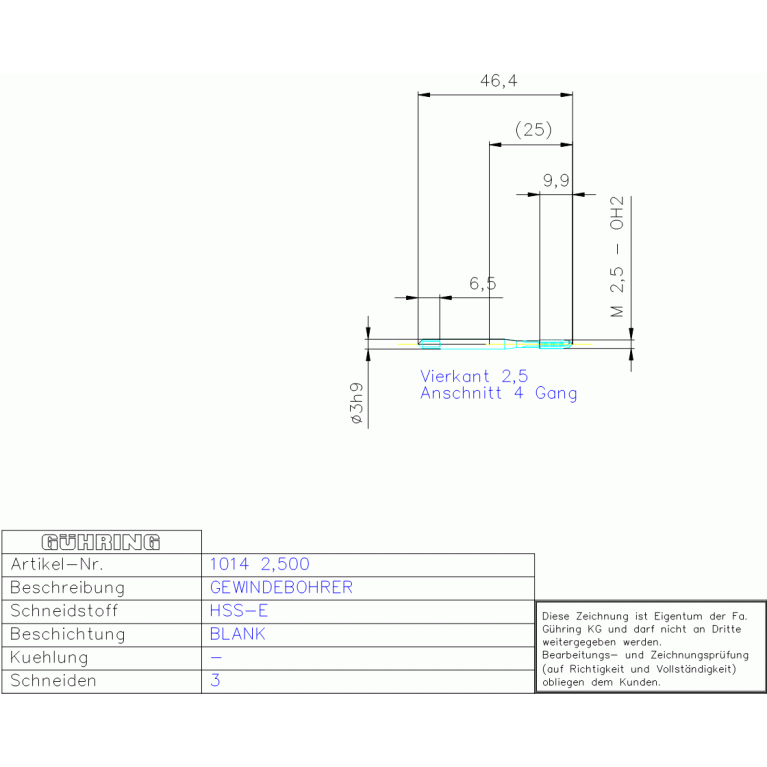

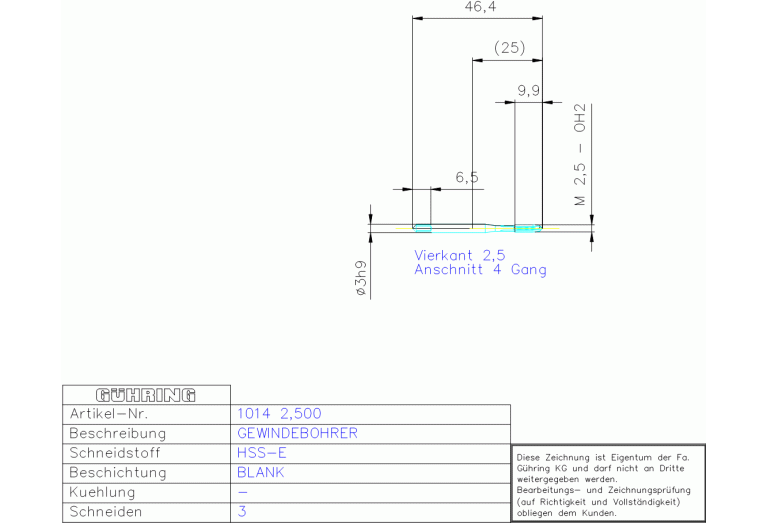

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1014 2.500

1014 2.500

1014 2.500 1014 2.500 1014 2.500 1014 2.500

1014 2.500

Gühring
Артикул: 1014 2.500
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
OHNE
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.025 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1/18/2024
DIN
ZYL00302105
DRVS Drive size
2.5 mm
FamilyProducts
HSS-E GBO M 2,5 JIS B 4430 UN-B
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
16 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0030
LOC-03 DCONMS Diameter
3 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00302105
LS Shank length
24.5 mm
Name Identifying order number
1014 2.500
NOF Flute count
3
OAL Overall length
44 mm
PLCD Gate diameter
2.01 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
JISB4430
TCL Tap chamfer length
1.8 mm
TCTR Thread tolerance class
OH2
TD Thread diameter
2.5 mm
THFT Thread form type
M
THL Thread cutting part length
9 mm
THOD Thread designation
M2.5x0.45-OH2
TP Thread pitch
0.45 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.005 kg
