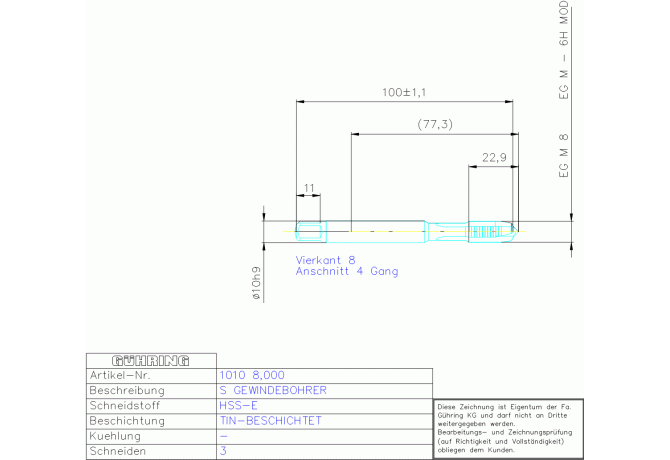

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1010 8.000

1010 8.000

1010 8.000 1010 8.000

1010 8.000

Gühring
Артикул: 9010100080000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
UN
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL01002105
DRVS Drive size
8 mm
FamilyProducts
HSS-E MA-GBO EG M 8 DIN 40435 FORM B
FHH Flute helix hand
N - Hand of helix neutral
GRDMFG Grade manufacturers designation
HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E
HAND Cutting direction
R - Right
ID Technical product number
9010100080000
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
39 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
LS Shank length
59.2 mm
Name Identifying order number
1010 8.000
NOF Flute count
3
OAL Overall length
100 mm
PLCD Gate diameter
8.27 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN40435
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
5 mm
TCTR Thread tolerance class
6H MOD
TD Thread diameter
8 mm
THFT Thread form type
EG M
THL Thread cutting part length
20 mm
TP Thread pitch
1.25 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.056 kg
