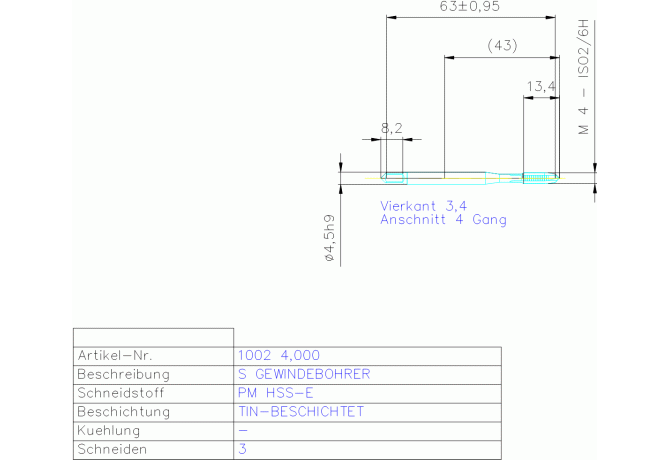

Главная Каталог продукции Toolunited 12 301-02 - Thread cutting tap with reinforced shank 1002 4.000

1002 4.000

1002 4.000 1002 4.000

1002 4.000

Gühring
Артикул: 9010020040000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CRCLMFG Chip removal class mfg
VA
CXSC Coolant exit style code
0 - Without coolant exit
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2021
DIN
ZYL00452105
DRVS Drive size
3.4 mm
FamilyProducts
PM HSS-E S - MA-GBO M 4 DIN 371 VA-B
FHH Flute helix hand
N - Hand of helix neutral
GRD2ND Standard designation of the grade 2nd application
PM HSS-E
GRDMFG Grade manufacturers designation
PM HSS-E
GRDPRIO Standard designation of the grade main application
HSS-E-PM
HAND Cutting direction
R - Right
ID Technical product number
9010020040000
Interface codes
J6 /
ISYC Subclass
301-02 - Thread cutting tap with reinforced shank
LDRED Neck length
21 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0045
LOC-03 DCONMS Diameter
4.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00452105
LS Shank length
36.7 mm
Name Identifying order number
1002 4.000
NOF Flute count
3
OAL Overall length
63 mm
PLCD Gate diameter
3.24 mm
PLG Plug style
B - Kappa r 8°
STDNO Standard
DIN371
TCDCONMS ISO-tolerance class shank diameter
h9
TCL Tap chamfer length
2.8 mm
TCTR Thread tolerance class
ISO2/6H
TD Thread diameter
4 mm
THFT Thread form type
M
THL Thread cutting part length
12 mm
THOD Thread designation
M4x0.7-ISO2/6H
TP Thread pitch
0.7 mm
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
WT Weight of item
0.008 kg
