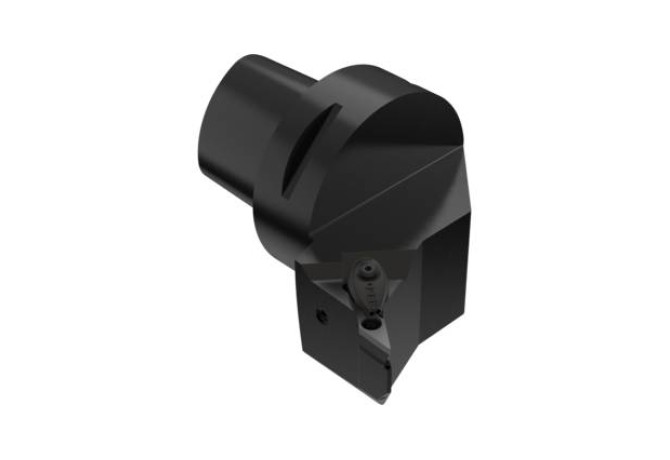

C8-DVJBL-55080-16JETI

C8-DVJBL-55080-16JETI C8-DVJBL-55080-16JETI C8-DVJBL-55080-16JETI C8-DVJBL-55080-16JETI

C8-DVJBL-55080-16JETI

Seco
Артикул: 03289631
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DIN
CCS08000185
FamilyProducts
C8-DVJBL-55080-16JETI
GAMF Rake angle radial
0 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
L - Left
ID Technical product number
03289631
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0800$$$$
ISO CSW1
ISO$VB1604**3N*****
ISYC Subclass
309-08 - System tool for external threading

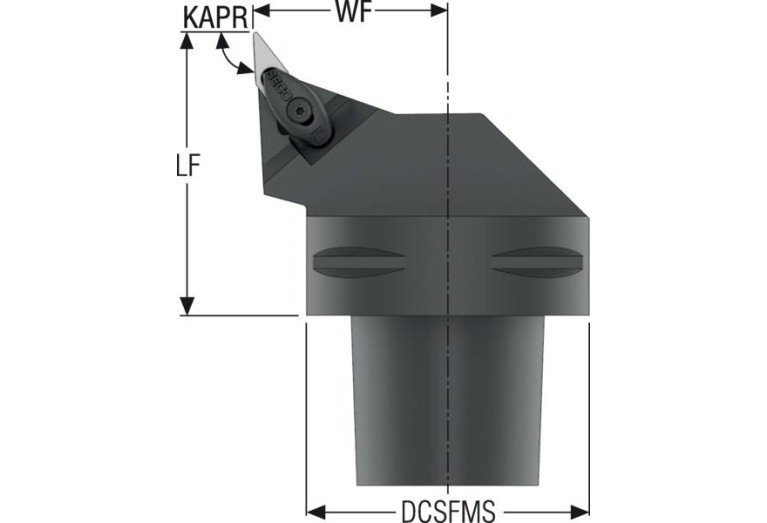

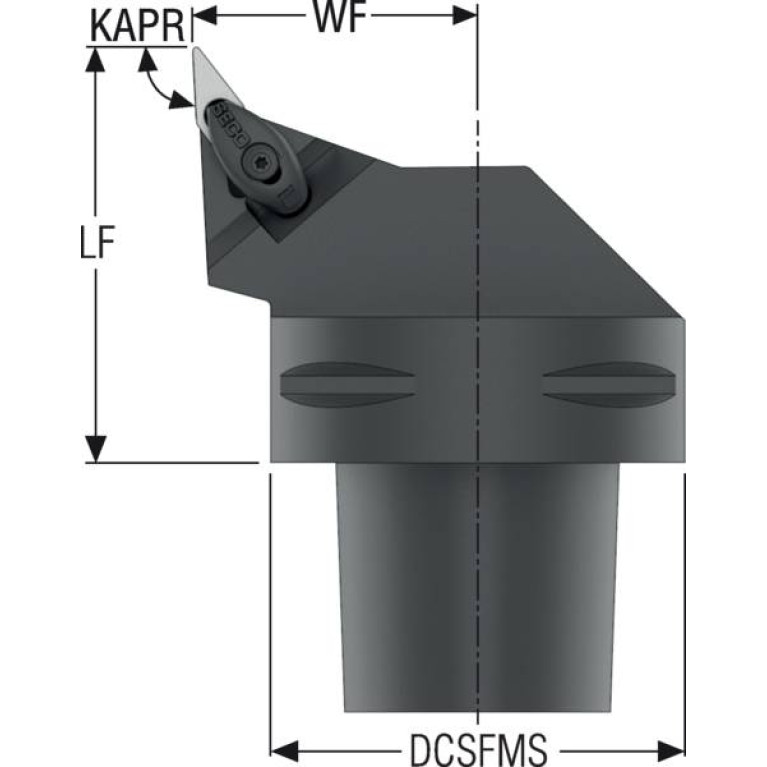

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
0 Degree

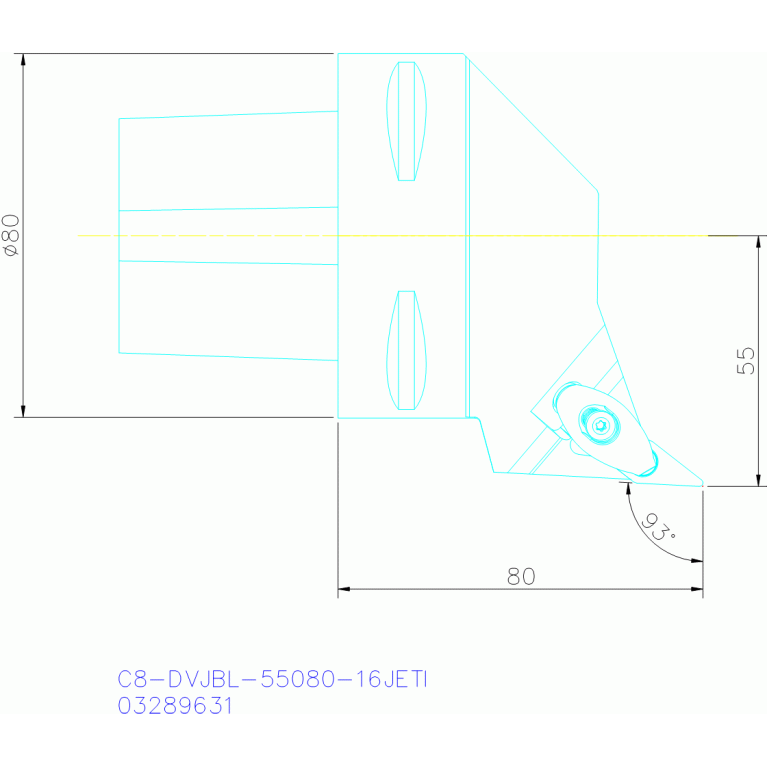

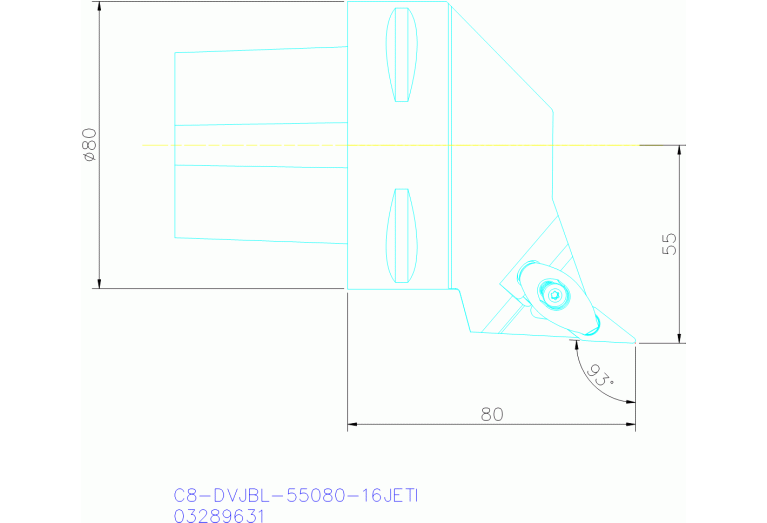

LF Functional length
80 mm
LH Head length
50 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0800
LOC-03 ISO
CCS01C0800$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000185
LPR Protruding length
80 mm
LTA Length tool assembly
80 mm
MIID Master insert identification
VBMT160404-M3
Name Identifying order number
C8-DVJBL-55080-16JETI
WF Functional width
55 mm
Working process
No working processes available
WT Weight of item
2.44 kg
