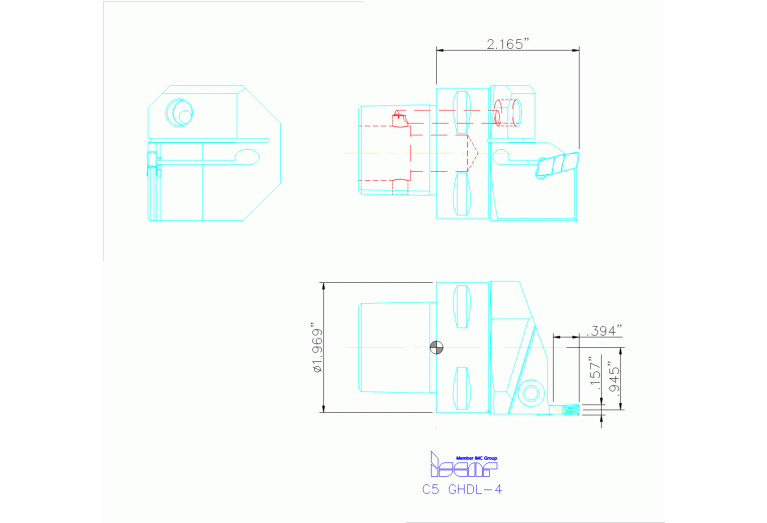

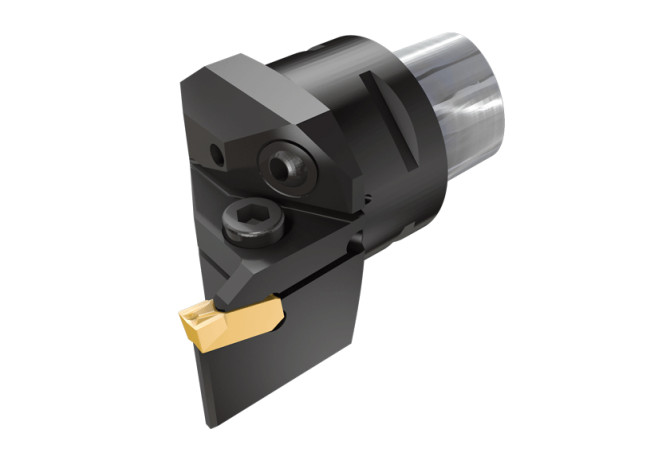

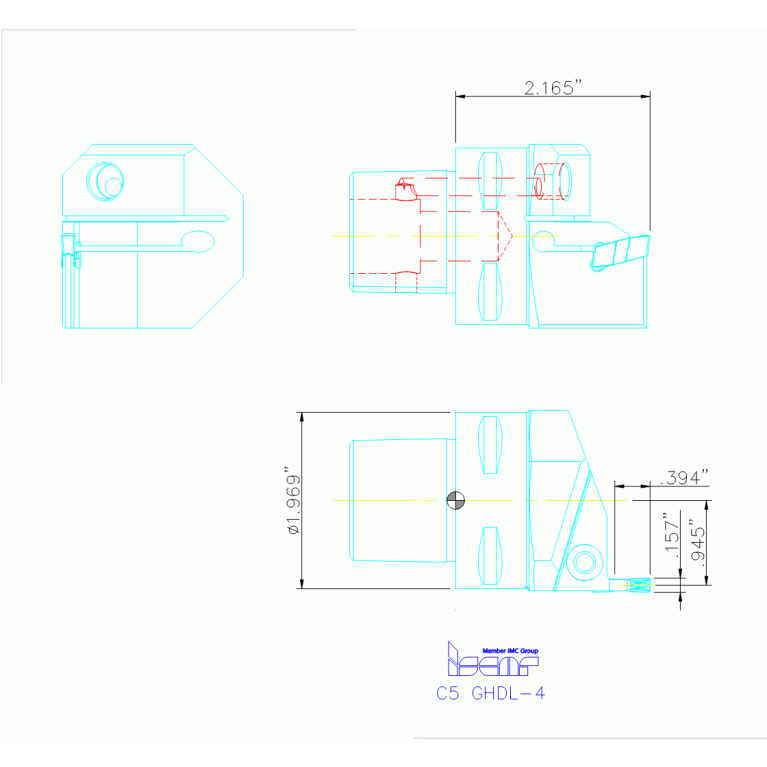

Главная Каталог продукции Toolunited 12 309-08 - System tool for external threading C5 GHDL-4

C5 GHDL-4

Артикул: 2892420

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS05000195

DIN CSW1

IS-1013189918023307

FamilyProducts

External Grooving, Turning and Parting Toolholders with CAMFIX Exchangeable Tapered Shanks

HAND Cutting direction

L - Left

ID Technical product number

2892420

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0500$$$$

ISO CSW1

IS$$1013189918023307

ISYC Subclass

309-08 - System tool for external threading

LF Functional length

55 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR Protruding length

55 mm

LTA Length tool assembly

55 mm

MIID Master insert identification

TIP 4MT-0.15

Name Identifying order number

C5 GHDL-4

OAL Overall length

85 mm

WF Functional width

24 mm

Working process

No working processes available

WT Weight of item

0.71 kg
