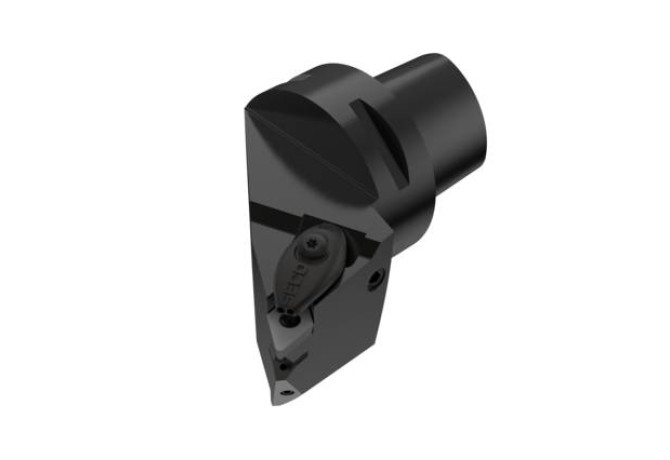

C5-DDJNR-35060-15JETI

C5-DDJNR-35060-15JETI C5-DDJNR-35060-15JETI C5-DDJNR-35060-15JETI C5-DDJNR-35060-15JETI

C5-DDJNR-35060-15JETI

SECO Tools
Артикул: 03282206
В наличии
В корзину
Описание
Характеристики
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/22/2022
DIN
CCS05000185
FamilyProducts
C5-DDJNR-35060-15JETI
GAMF Rake angle radial
-6.3 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-5.7 Degree
HAND Cutting direction
R - Right
ID Technical product number
03282206
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISO
CCS01C0500$$$$
ISO CSW1
ISO$DN1506**2N*****
ISYC Subclass
309-08 - System tool for external threading

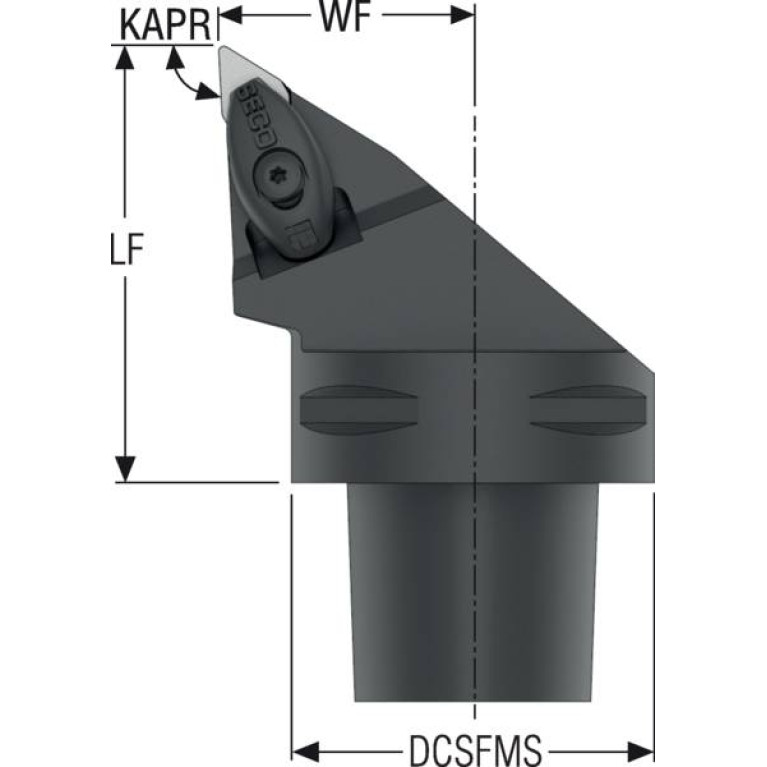

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-6 Degree

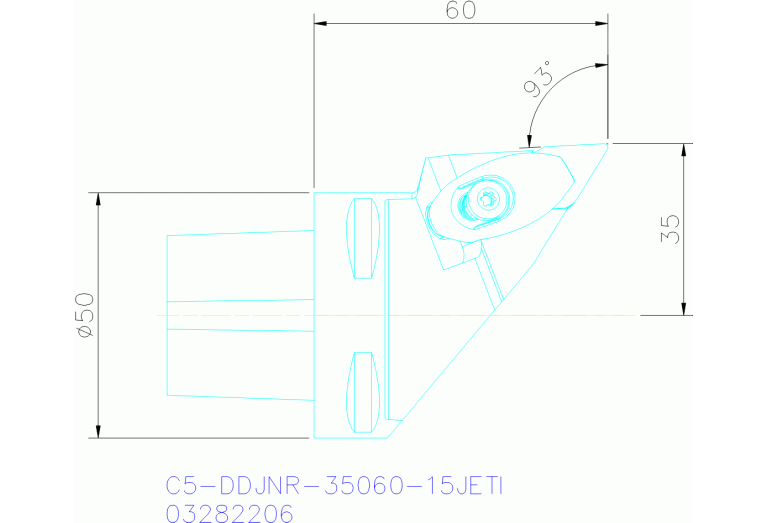

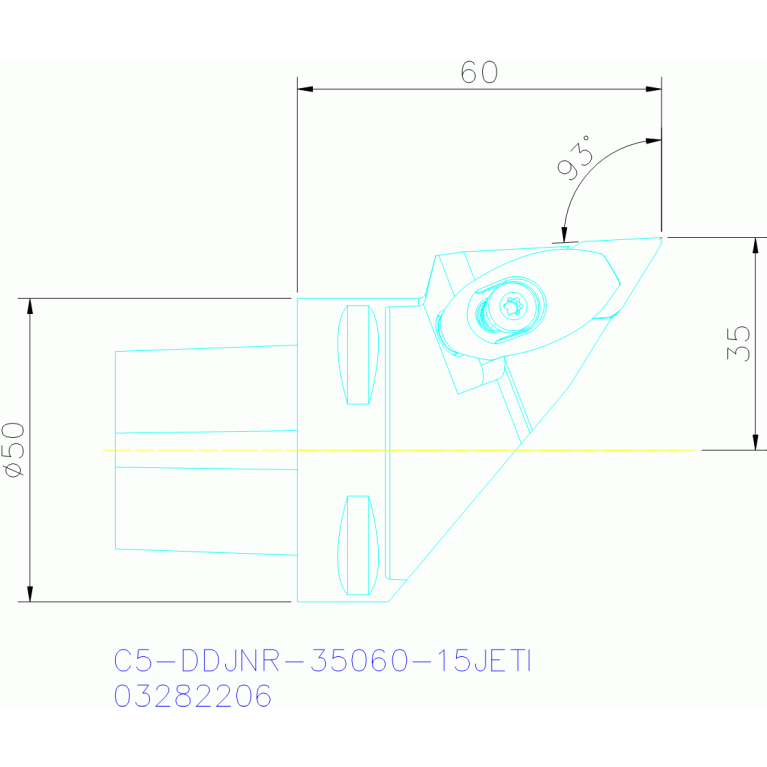

LF Functional length
60 mm
LH Head length
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
60 mm
LTA Length tool assembly
60 mm
MIID Master insert identification
DNMG150608-MF1
Name Identifying order number
C5-DDJNR-35060-15JETI
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
1.2 kg
