Главная Каталог продукции Toolunited 12 309-11 - System tool for OD grooving and parting G4011-C4R-2T17DX18-P

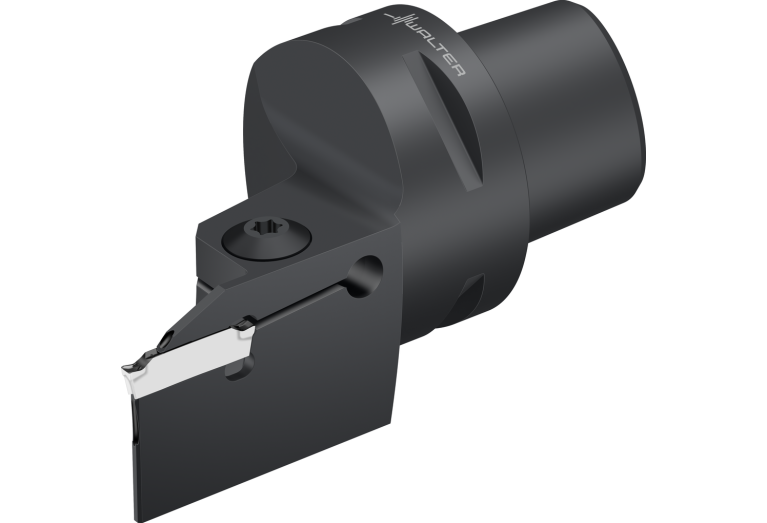

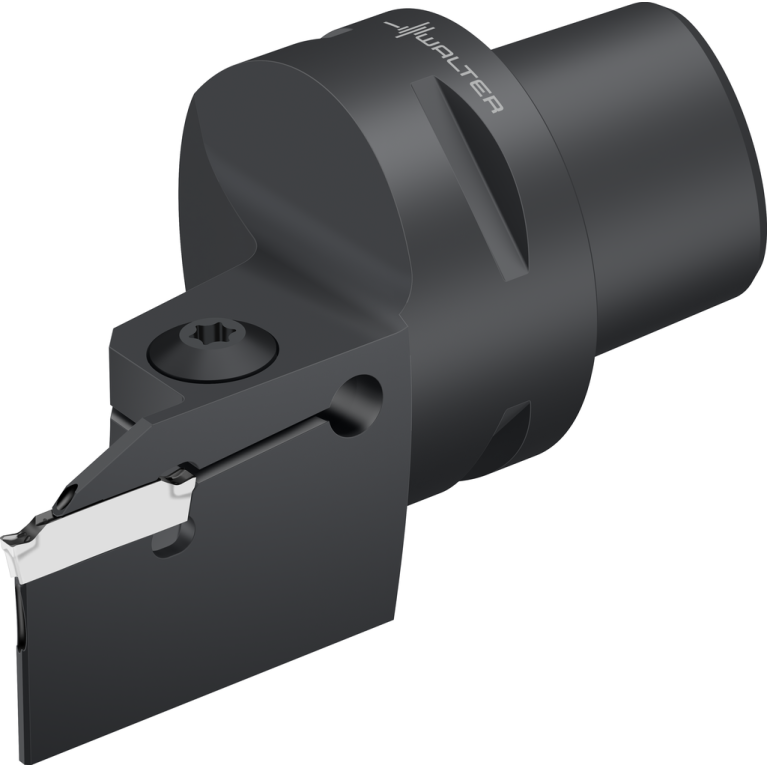

G4011-C4R-2T17DX18-P

Артикул: 7957672

В наличии

В корзину

Описание

Характеристики

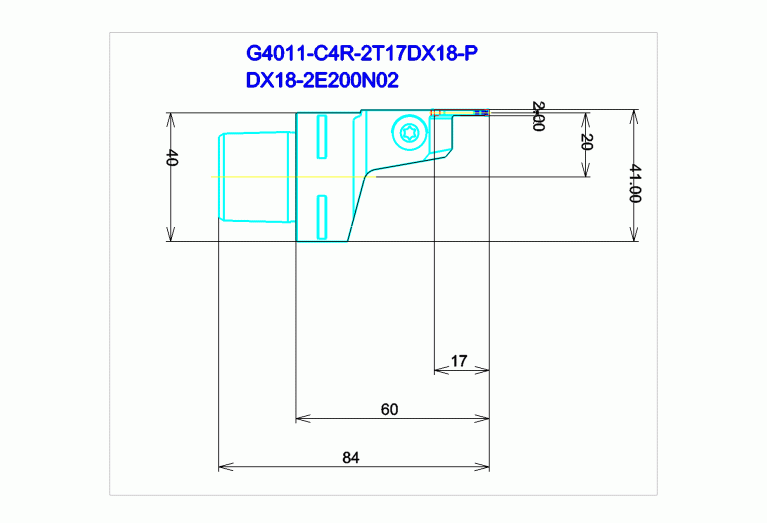

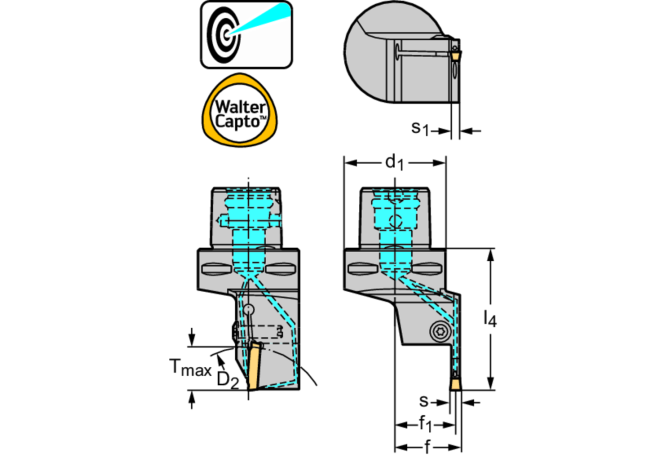

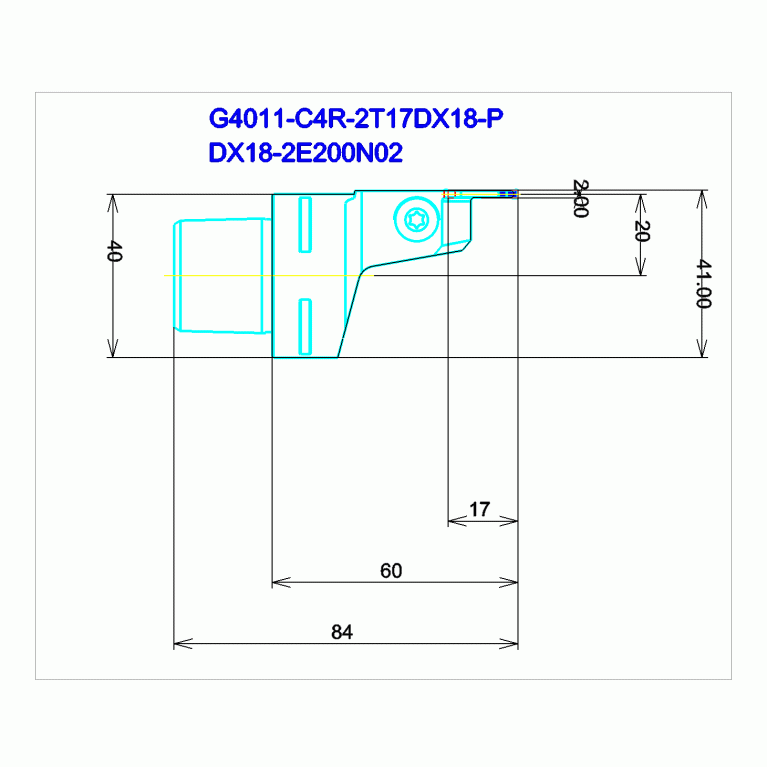

CDX Cutting depth maximum

17 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CW Cutting width

2 mm

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS04000195

DIN CSW1

W-DX182000***EX**

FamilyProducts

Groove turning – Radial grooving G4011-C...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

7957672

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0400$$$$

ISO CSW1

WR$$DX182000***EX**

ISYC Subclass

309-11 - System tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

60 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

CCS01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR Protruding length

84 mm

LTA Length tool assembly

60 mm

MIID Master insert identification

DX18-2

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G4011-C4R-2T17DX18-P

OAL Overall length

84 mm

STDNO Standard

ISO26623-1

THSC Tool holder shape code

G - straight shank design

Working process

DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,ESA - Cutting off

WT Weight of item

0.321 kg
