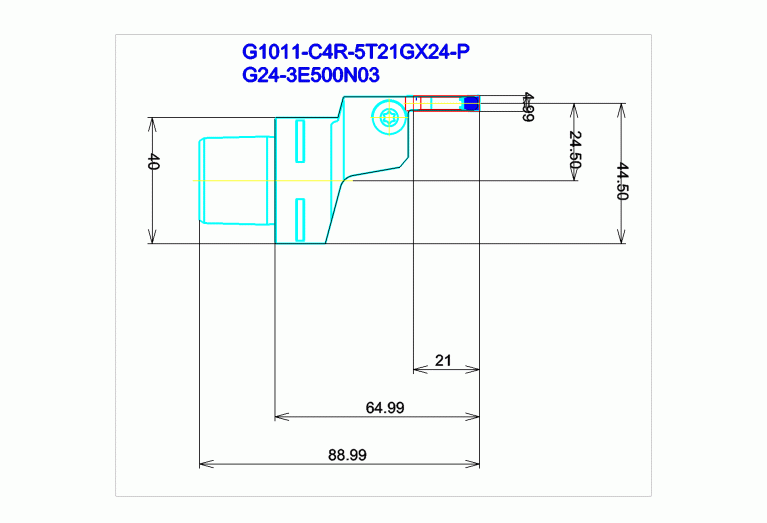

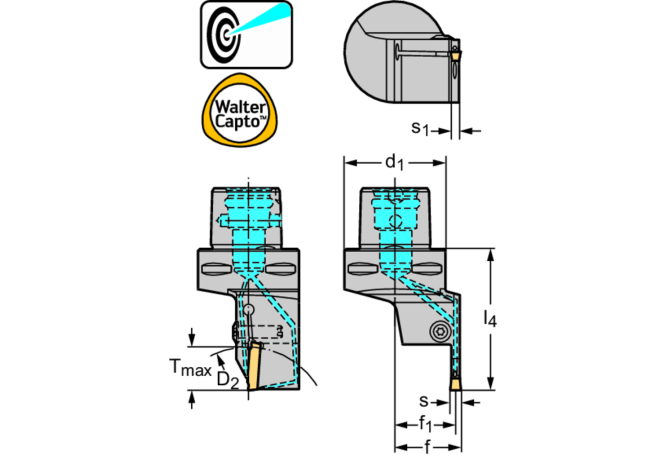

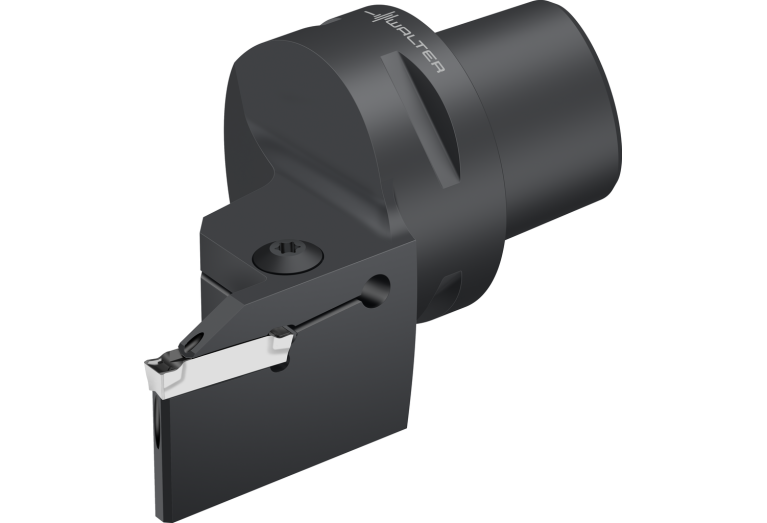

G1011-C4R-5T21GX24-P

Артикул: 7957664

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

21 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CW Cutting width

5 mm

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS04000195

DIN CSW1

W-GX243050***EX**

FamilyProducts

Groove turning – Radial grooving G1011-C...-P

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

7957664

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0400$$$$

ISO CSW1

WR$$GX243050***EX**

ISYC Subclass

309-11 - System tool for OD grooving and parting

KAPR Tool cutting edge angle

90 Degree

LAMS Inclination angle

0 Degree

LF Functional length

65 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

CCS01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR Protruding length

89 mm

LTA Length tool assembly

65 mm

MTP Clamping type code

C - Top clamping without bore

Name Identifying order number

G1011-C4R-5T21GX24-P

OAL Overall length

89 mm

STDNO Standard

ISO26623-1

THSC Tool holder shape code

G - straight shank design

Working process

DDA - External turning,DEA - Outer diameter grooving,DFA - External form turning,ESA - Cutting off

WT Weight of item

0.354 kg
