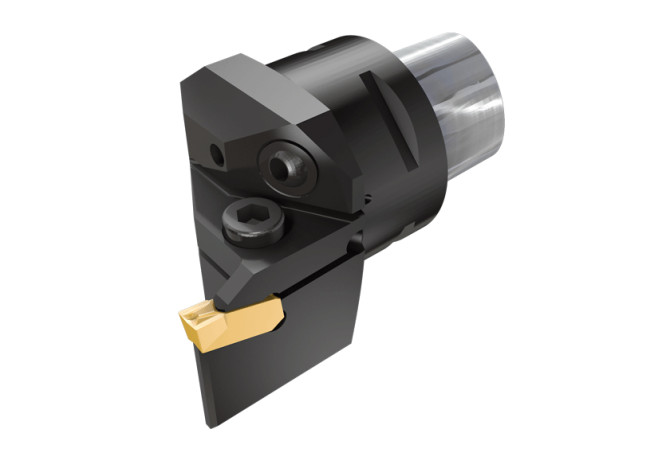

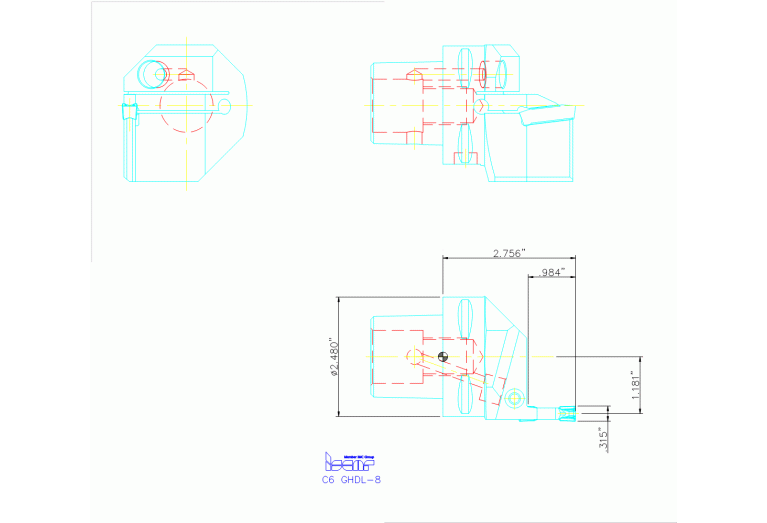

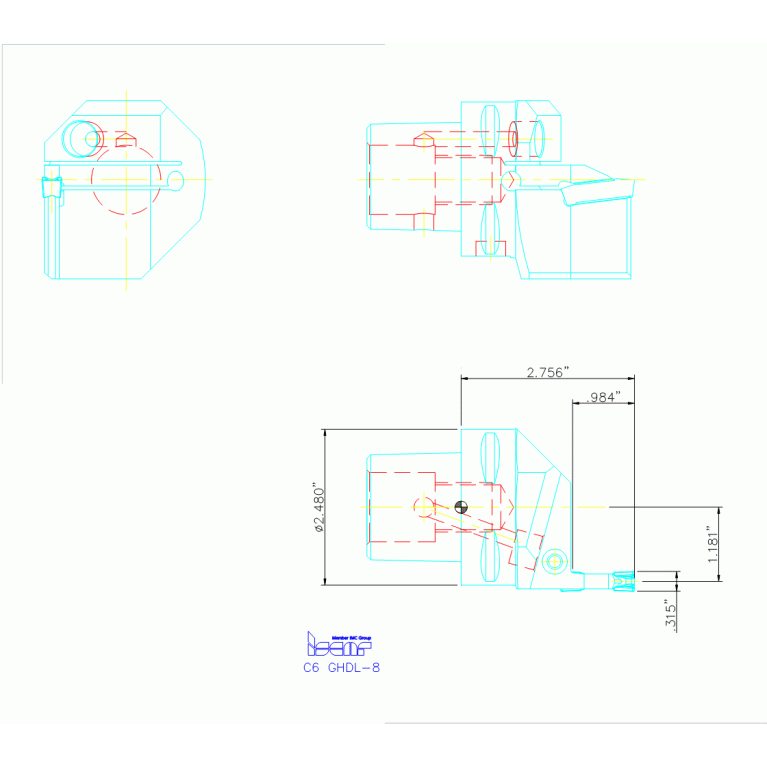

C6 GHDL-8

Артикул: 2899288

В наличии

В корзину

Описание

Характеристики

CDX Cutting depth maximum

25 mm

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

5 - With coolant supply (discharge) in axial in direction, diagonal adjustable

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

DIN

CCS06300195

DIN CSW1

IS-283918069792406

FamilyProducts

External Grooving, Turning and Parting Toolholders with CAMFIX Exchangeable Tapered Shanks

HAND Cutting direction

L - Left

ID Technical product number

2899288

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0630$$$$

ISO CSW1

IS$$283918069792406

ISYC Subclass

309-11 - System tool for OD grooving and parting

LF Functional length

70 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

70 mm

LTA Length tool assembly

70 mm

MIID Master insert identification

GIF 8.00E-0.40

Name Identifying order number

C6 GHDL-8

OAL Overall length

108 mm

WF Functional width

30 mm

Working process

No working processes available

WT Weight of item

1.25 kg
