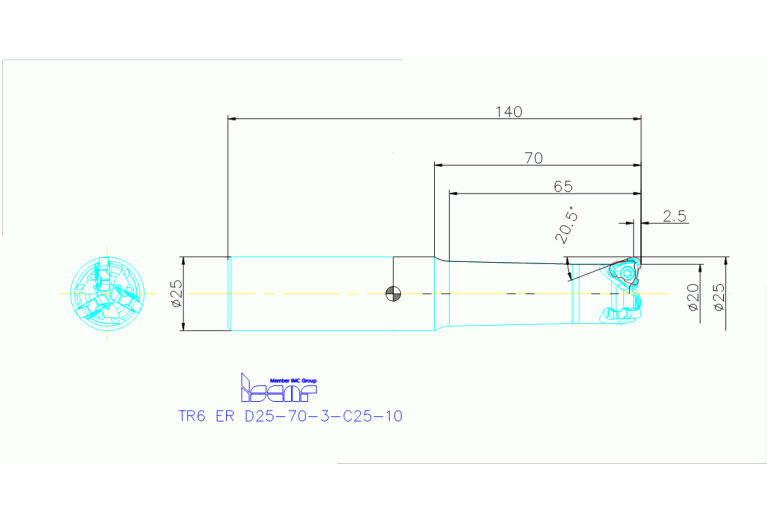

TR6 ER D25-70-3-C25-10
TR6 ER D25-70-3-C25-10
Артикул:
3320733
В наличии
Характеристики
APMX Depth of cut maximum
3 mm
CCONMS Connection count machine side
0
CICT Cutting item count
3
COMPC Company code
IS - Iscar
DC Cutting diameter
20.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Multifunction Endmills That Can Carry Four Different Insert Geometries
HAND Cutting direction
R - Right
ID Technical product number
3320733
Interface codes
/
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
140.12 mm
LH Head length
70.1 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
84 mm
LU Usable length
65.12 mm
Name Identifying order number
TR6 ER D25-70-3-C25-10
OAL Overall length
140.12 mm
Working process
No working processes available
WT Weight of item
0.41 kg
ZEFP Peripheral effective cutting edge count
3
