Главная Каталог продукции Toolunited 12 307-01 - Non-centre cutting single row end mill R217.21-1.2516RELO06.5A

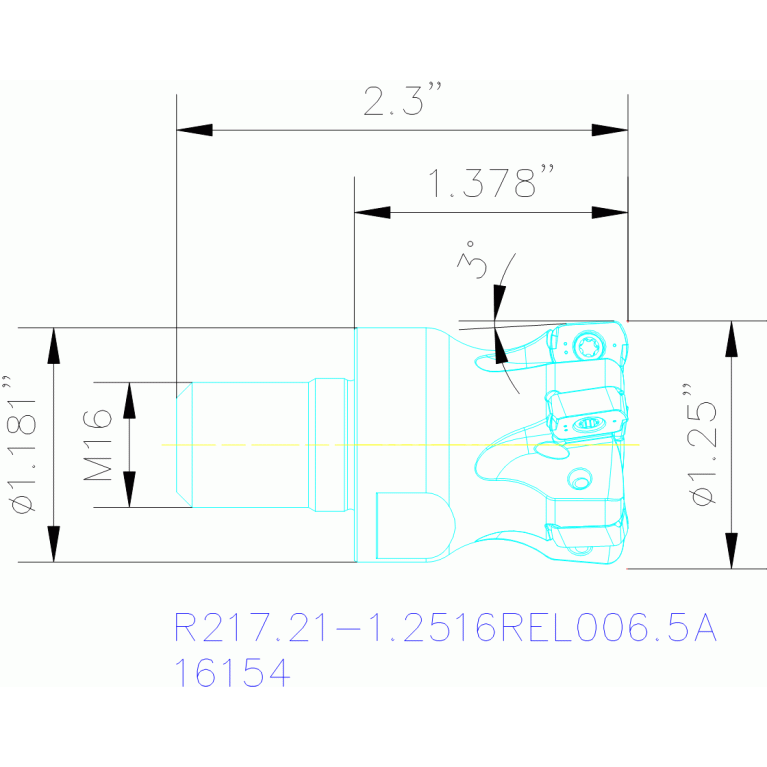

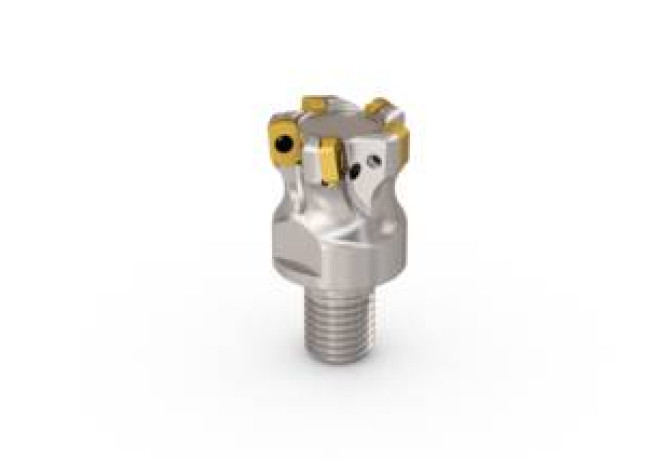

R217.21-1.2516RELO06.5A

R217.21-1.2516RELO06.5A R217.21-1.2516RELO06.5A R217.21-1.2516RELO06.5A R217.21-1.2516RELO06.5A

R217.21-1.2516RELO06.5A

SECO Tools
Артикул: 02842019
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
0.9 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
3.57 mm
CCONMS Connection count machine side
3
CICT Cutting item count
5
COMPC Company code
SO - SECO Tools
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
SAD01600105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
R217.21-1.2516RELO06.5A
GAMF Rake angle radial
-10.5 Degree
GAMP Rake angle axial
-7 Degree
HAND Cutting direction
R - Right
ID Technical product number
02842019
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SCM01G3000$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 ISO
SCM01G3000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600105
Name Identifying order number
R217.21-1.2516RELO06.5A
NameAnsi Identifying order number inch alternative
R217.21-01.25-16RE-LO06-5A
RMPX Ramping angle maximum
0.5 Degree
RPMX Rotational speed maximum
27000 1/min
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.162 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
