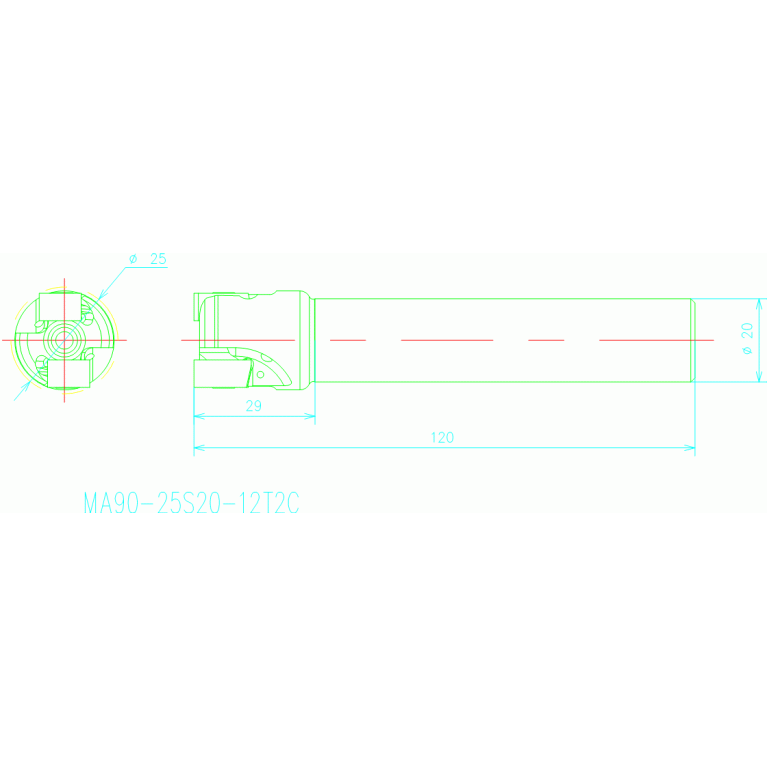

MA90-25S20-12T2C
MA90-25S20-12T2C
Артикул:
THN08722
В наличии
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
12 mm
AZ Plunge depth maximum
1.3 mm
B1A Cutting edge length Pos. A
13.28 mm
B2A Insert width Pos. A
6.6 mm
B3A Inscribed circle diameter Pos. A
6.6 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
10.04 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KYO - Kyocera
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/21/2023
DIN
ZYL02000115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
MA90 Tangential 90° End Mill
HAND Cutting direction
R - Right
ID Technical product number
THN08722
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
120 mm
LH Head length
29 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000115
LPR Protruding length
29 mm
LS Shank length
91 mm
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
MA90-25S20-12T2C
OAL Overall length
120 mm
RMPX Ramping angle maximum
2 Degree
RPMX Rotational speed maximum
18300 1/min
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
FEC - Square shoulder milling,FNB - Slotting,FPL - Face milling
WT Weight of item
0.3 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
