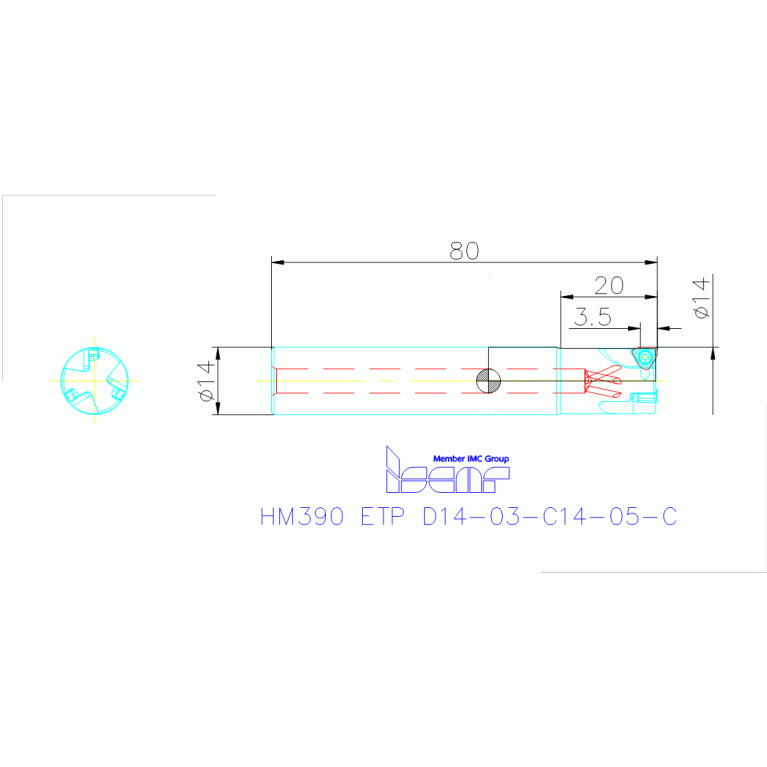

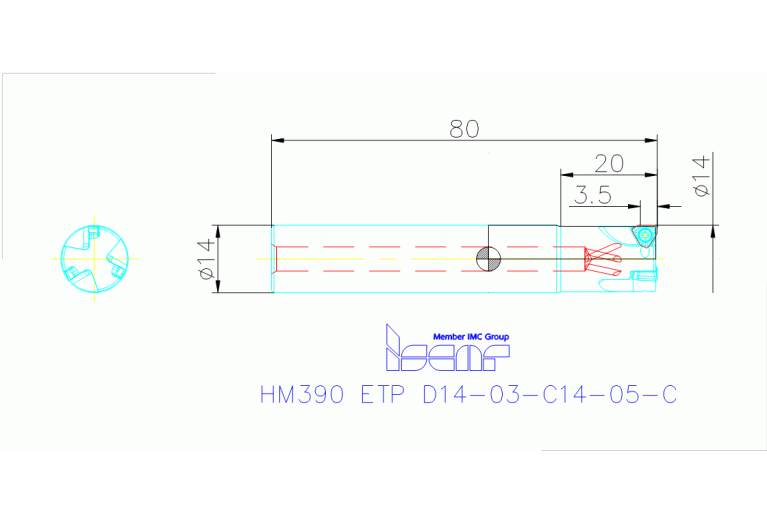

HM390 ETP D14-03-C14-05-C

Артикул: 3345994

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

3.5 mm

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

IS - Iscar

DC Cutting diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Endmills Carrying HM390 TPKT 0502 Triangular Inserts with 3 Helical Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3345994

Interface codes

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LF Functional length

80 mm

LH Head length

20 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0140

LOC-03 DCONMS Diameter

14 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

HM390 ETP D14-03-C14-05-C

OAL Overall length

80 mm

RMPX Ramping angle maximum

1.5 Degree

Working process

No working processes available

WT Weight of item

0.08 kg

ZEFP Peripheral effective cutting edge count
