Главная Каталог продукции Toolunited 12 307-01 - Non-centre cutting single row end mill HM390 ETP D08-2-C08-04

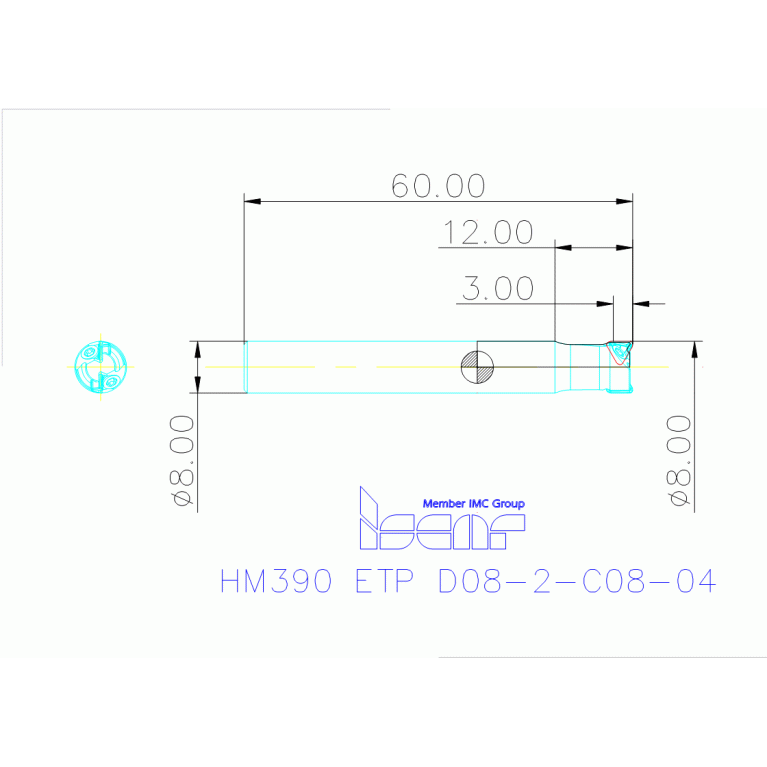

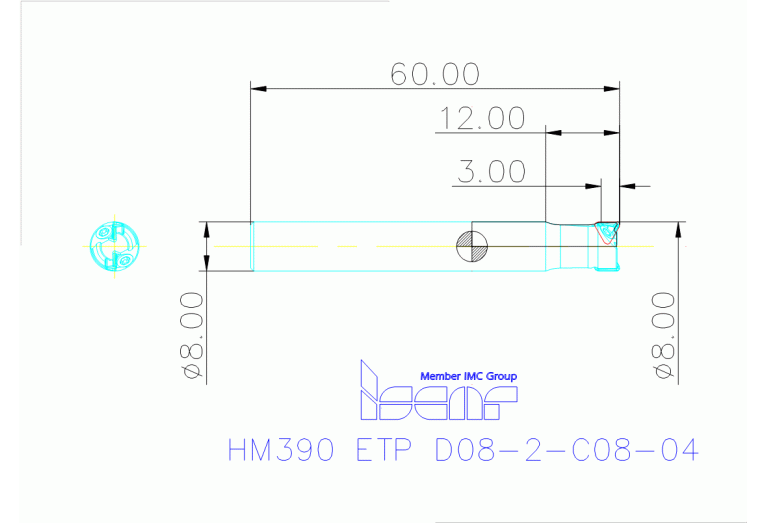

HM390 ETP D08-2-C08-04

Артикул: 3321283

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

3 mm

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

IS - Iscar

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

4/1/2022

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Small Diameter Endmills Carrying HM390 TPKR 0401 Triangular Inserts with 3 Helical Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3321283

Interface codes

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LF Functional length

60 mm

LH Head length

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LPR Protruding length

24 mm

LU Usable length

9.6 mm

Name Identifying order number

HM390 ETP D08-2-C08-04

OAL Overall length

60 mm

RMPX Ramping angle maximum

3 Degree

Working process

No working processes available

WT Weight of item

0.02 kg

ZEFP Peripheral effective cutting edge count
