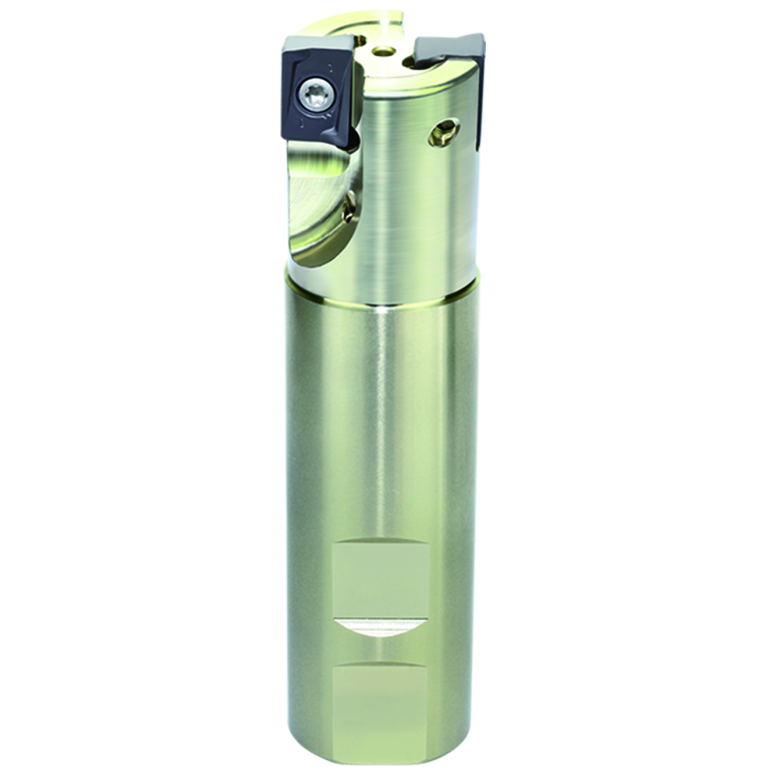

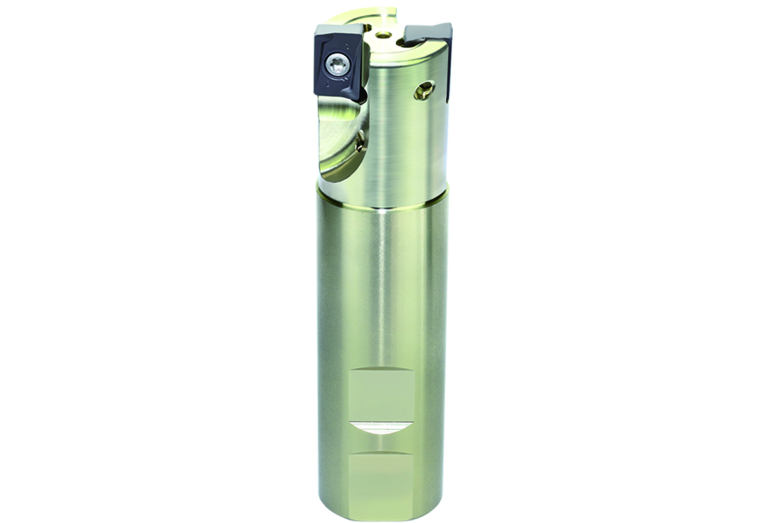

Главная Каталог продукции Toolunited 12 307-01 - Non-centre cutting single row end mill EMP13-040-XP32-AN15-03

EMP13-040-XP32-AN15-03

Артикул: EMP13-040-XP32-AN15-03

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

85 Degree

A2A Clearance angle major Pos. A

0 Degree

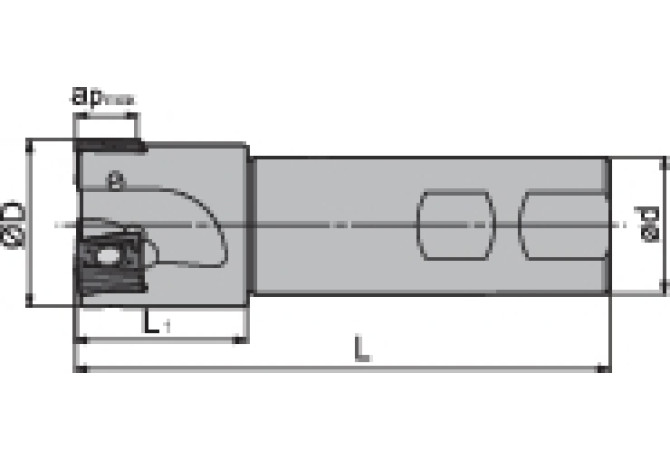

APMX Depth of cut maximum

11.2 mm

B1A Cutting edge length Pos. A

15.43 mm

B2A Insert width Pos. A

11 mm

B3A Inscribed circle diameter Pos. A

11 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

7.3 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

7.4 kg

DIN

ZYL03201005

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Square shoulder mill

HAND Cutting direction

R - Right

ID Identifying order number

EMP13-040-XP32-AN15-03

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201005

LS Shank length

85 mm

OAL Overall length

125 mm

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FRU - Round moulding

WT Weight of item

0.76 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
