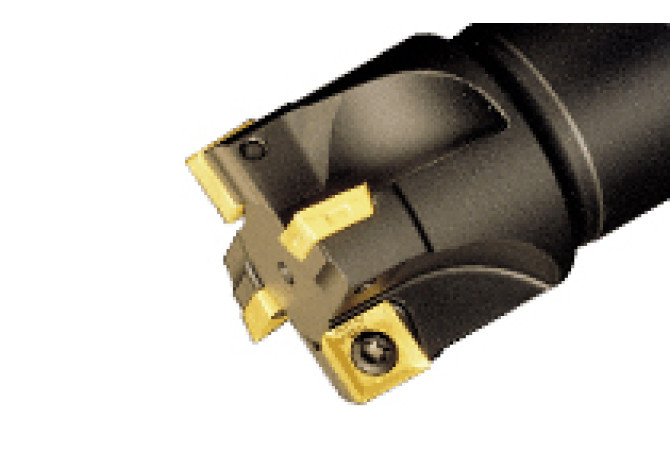

E90SP D32-03-C32-10

E90SP D32-03-C32-10 E90SP D32-03-C32-10

E90SP D32-03-C32-10

Iscar
Артикул: 3325072
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
9.6 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL03200105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
Endmills Carrying Square Inserts
HAND Cutting direction
R - Right
ID Technical product number
3325072
Interface codes
J6 / J61
ISO
ZYL01G3200h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
130 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G3200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200105
LU Usable length
32 mm
Name Identifying order number
E90SP D32-03-C32-10
OAL Overall length
130 mm
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.69 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
