Главная Каталог продукции Toolunited 12 307-01 - Non-centre cutting single row end mill AJX08R324AM1645

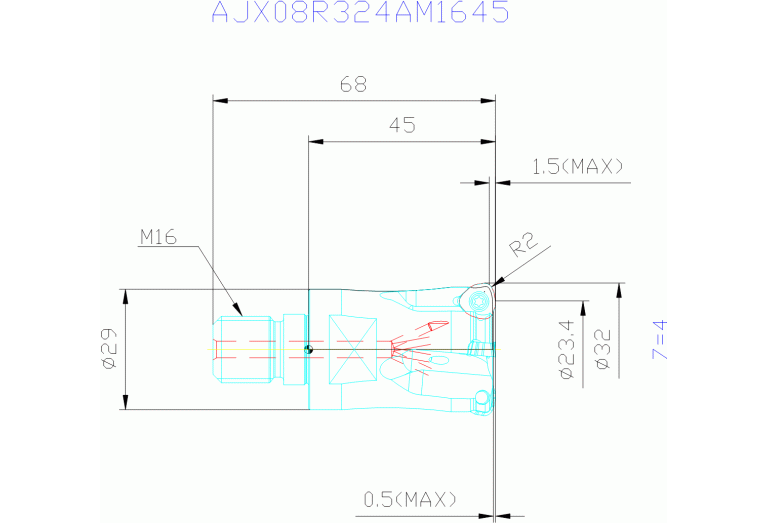

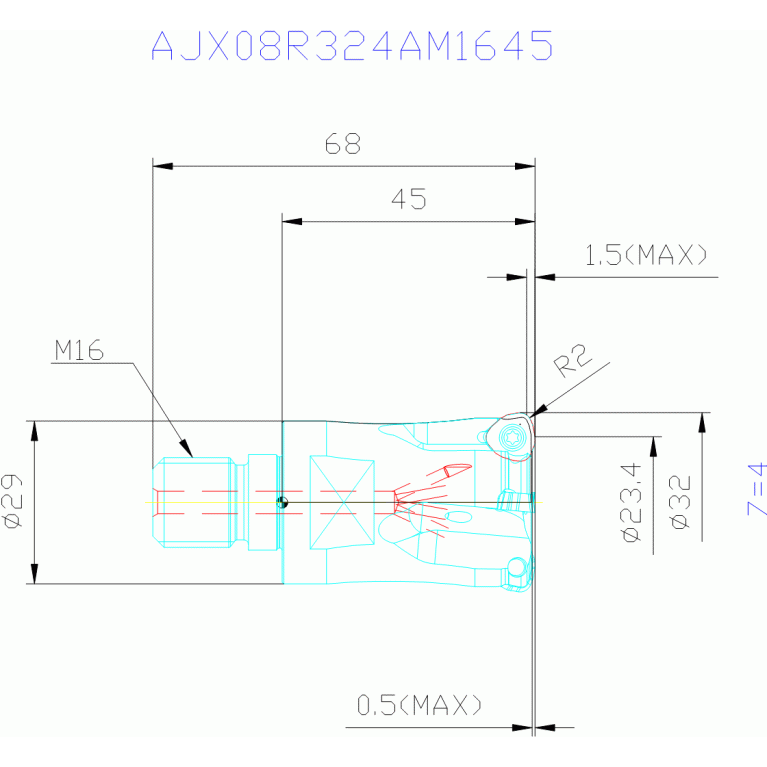

AJX08R324AM1645

AJX08R324AM1645 AJX08R324AM1645 AJX08R324AM1645 AJX08R324AM1645

AJX08R324AM1645

Mitsubishi Materials
Артикул: 10654248
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
1.5 mm
AZ Plunge depth maximum
0.5 mm
BD Body diameter
30.303 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
32 mm
Delivery state valid from
8/1/2023
DIN
SAD01600215
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
High Feed Radius Milling Cuttter
GAMF Rake angle radial
5 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
10654248
Interface codes
J6 / J61
ISO
SAD02G1600$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
17 mm
LOC-03 ISO
SAD02G1600$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600215
LPR Protruding length
45 mm
Name Identifying order number
AJX08R324AM1645
OAL Overall length
68 mm
RMPX Ramping angle maximum
1.4 Degree
Working process
No working processes available
WT Weight of item
0.2 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
