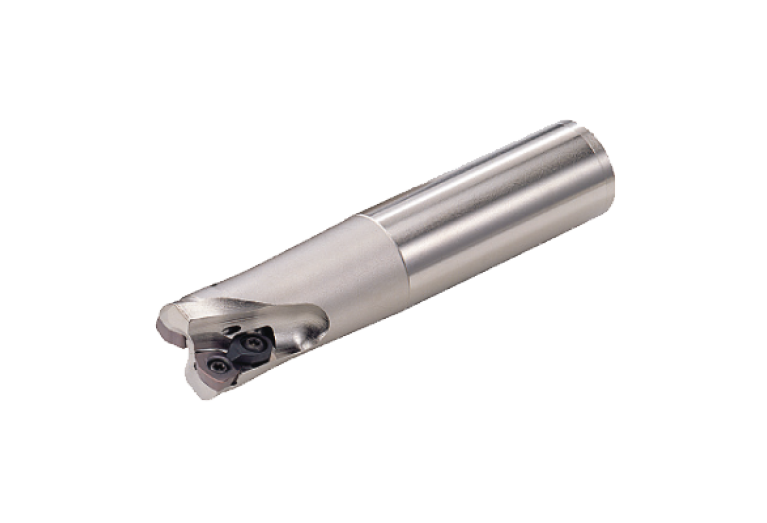

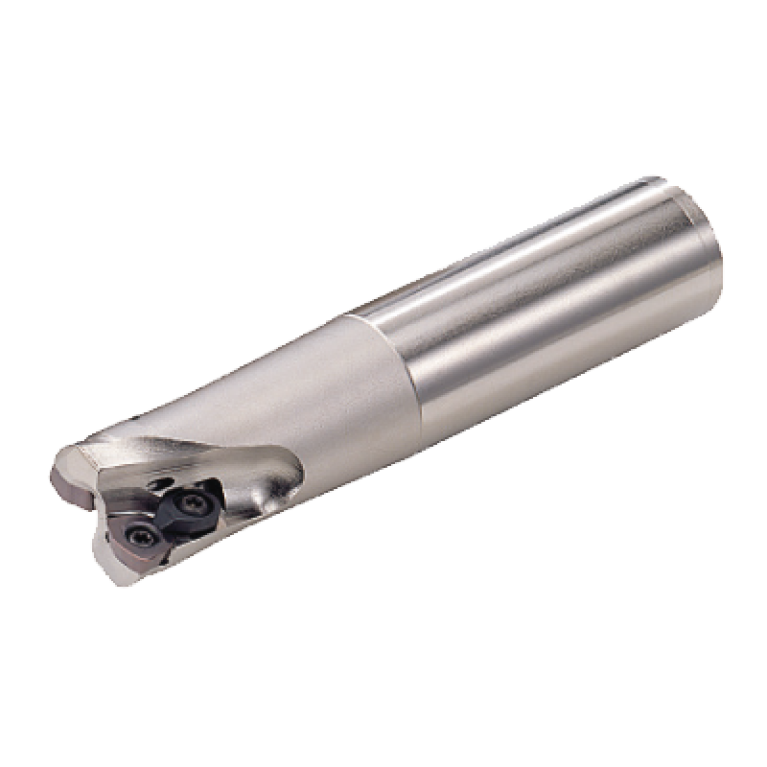

Главная Каталог продукции Toolunited 12 307-01 - Non-centre cutting single row end mill AJX06R254SA25S

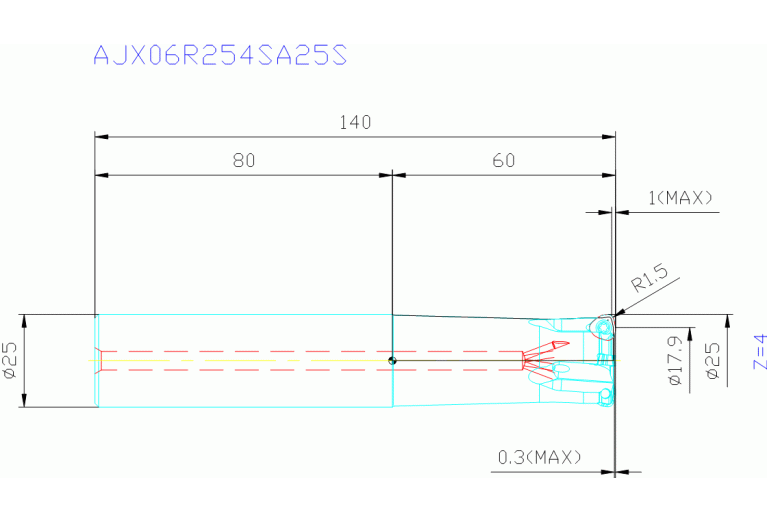

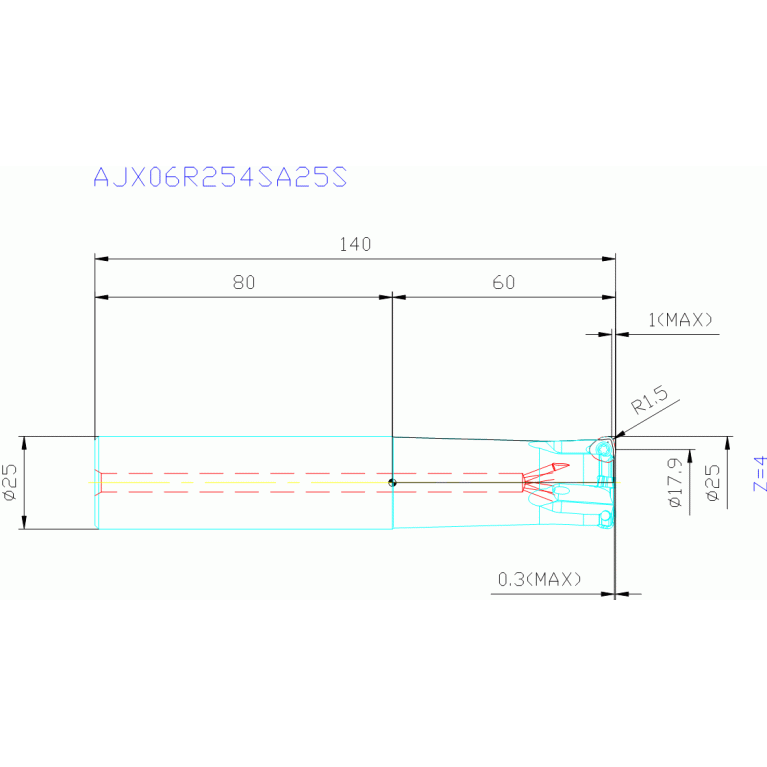

AJX06R254SA25S

AJX06R254SA25S AJX06R254SA25S AJX06R254SA25S AJX06R254SA25S

AJX06R254SA25S

Mitsubishi Materials
Артикул: 10653937
В наличии
В корзину
Описание
Характеристики

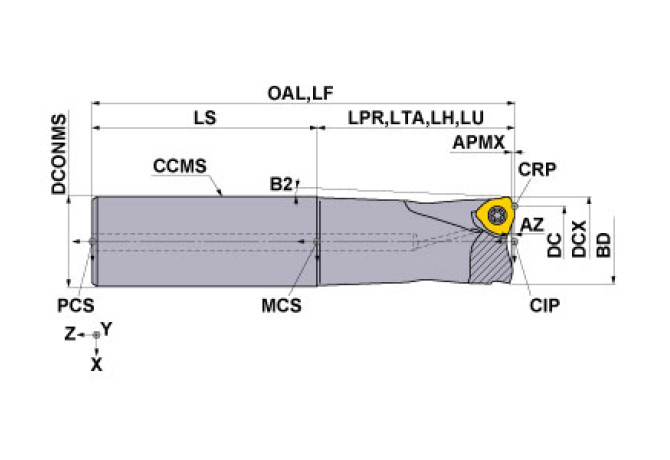

APMX Depth of cut maximum
1 mm
AZ Plunge depth maximum
0.3 mm
BD Body diameter
23.564 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
25 mm
Delivery state valid from
8/1/2023
DIN
ZYL02500115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
High Feed Radius Milling Cuttter
GAMF Rake angle radial
4 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
10653937
Interface codes
J6 / J61
ISO
ZYL01G2500$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
140 mm
LH Head length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
60 mm
LS Shank length
80 mm
LU Usable length
60 mm
Name Identifying order number
AJX06R254SA25S
OAL Overall length
140 mm
RMPX Ramping angle maximum
0.8 Degree
Working process
No working processes available
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
