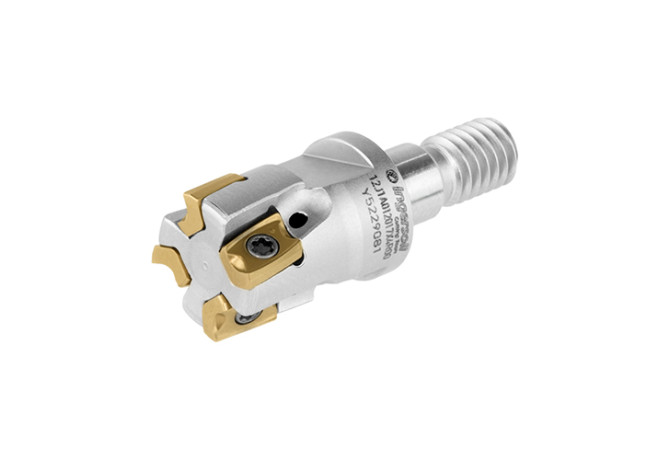

Главная Каталог продукции Toolunited 12 307-01 - Non-centre cutting single row end mill 12J1A020030X6R00

12J1A020030X6R00

12J1A020030X6R00 12J1A020030X6R00 12J1A020030X6R00

12J1A020030X6R00

Ingersoll
Артикул: 3711872
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
5 mm
BI Block index
1
CCONMS Connection count machine side
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/15/2023
DIN
SAD01000115
DN Neck diameter
17.8 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
6
FamilyProducts
End Mill 12J1A...X
HAND Cutting direction
R - Right
ID Technical product number
3711872
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IL-WSP-4485
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-4294
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01000115
LPR Protruding length
30 mm
Name Identifying order number
12J1A020030X6R00
OAL Overall length
49.8 mm
THSZMS Connection thread nominal size machine side
M10
Working process
FEC - Square shoulder milling,FNU - Groove milling
WT Weight of item
0.01 kg
ZEFF Face effective cutting edge count
6
ZEFP Peripheral effective cutting edge count
6
