Главная Каталог продукции Toolunited 12 305-18 - Boring head with adjustable unit B5115-035-045-T28-CC06

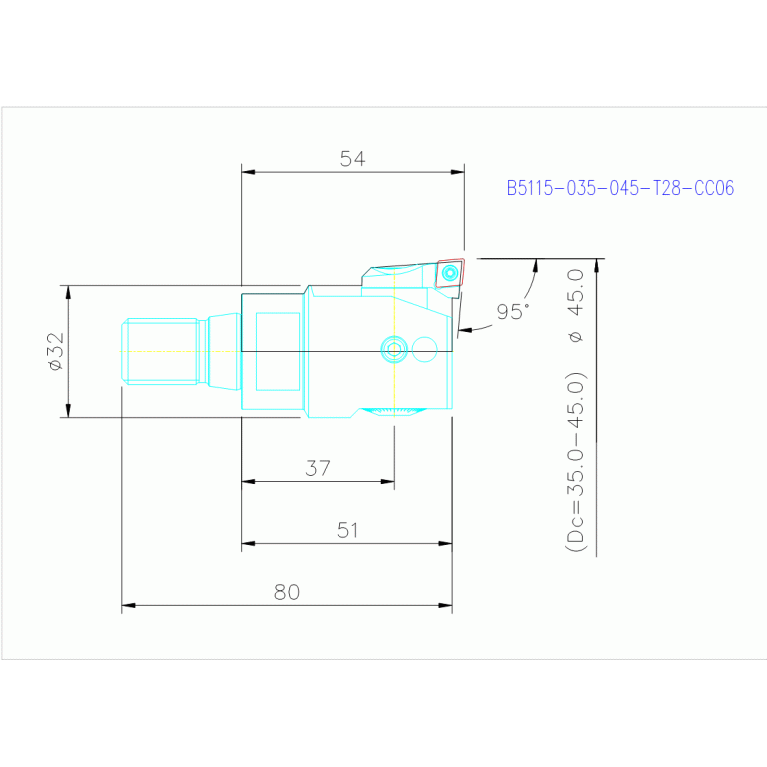

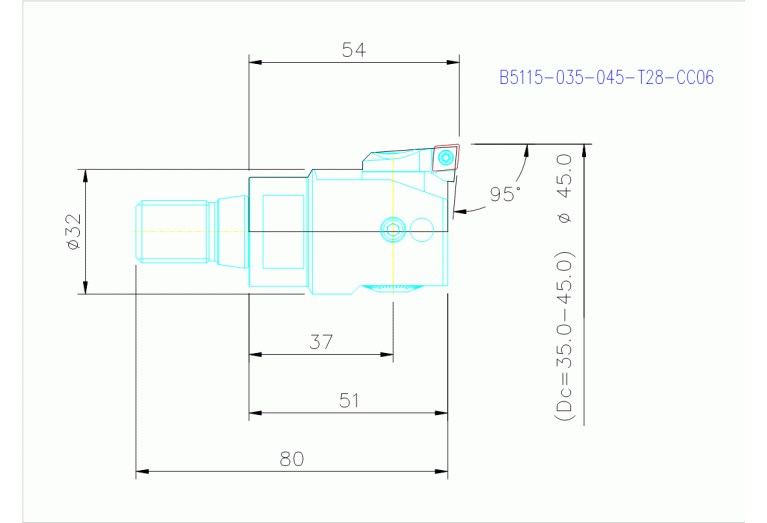

B5115-035-045-T28-CC06

B5115-035-045-T28-CC06 B5115-035-045-T28-CC06 B5115-035-045-T28-CC06 B5115-035-045-T28-CC06

B5115-035-045-T28-CC06

Walter
Артикул: 8246816
В наличии
В корзину
Описание
Характеристики
ADJIN Adjustment increment axial
0.001 mm
ADJIN Adjustment increment radial
0.001 mm
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCN Cutting diameter minimum
35 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
45 mm
Delivery state valid from
12/1/2023
DIN
SAW02800195
DIN CSW1
CC0602043N
FamilyProducts
Precision boring tool B5115
HAND Cutting direction
R - Right
ID Technical product number
8246816
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
SAW01C0280$$$$
ISO CSW1
ISO$CC0602003****04
ISYC Subclass
305-18 - Boring head with adjustable unit
KAPR Tool cutting edge angle
95 Degree
LF Functional length
54 mm
LOC-01 ISO
ISO$CC0602003****04
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
CC0602043N
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SAW Screw mounting WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0280
LOC-03 DCONMS Diameter
28 mm
LOC-03 ISO
SAW01C0280$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAW02800195
LPR Protruding length
54 mm
MIID Master insert identification
CCMT 06 02 04
Name Identifying order number
B5115-035-045-T28-CC06
OAL Overall length
83 mm
RPMX Rotational speed maximum
10913 1/min
Working process
BAB - Open by boring
WT Weight of item
0.3 kg
ZEFP Peripheral effective cutting edge count
1
