B3230.UN3.033-041.Z1CP05
B3230.UN3.033-041.Z1CP05
Артикул:
5027999
В наличии
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCN Cutting diameter minimum
33 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
41 mm
Delivery state valid from
12/1/2023
DIN
NCT03200195
DIN CSW1
CP0502993N
FamilyProducts

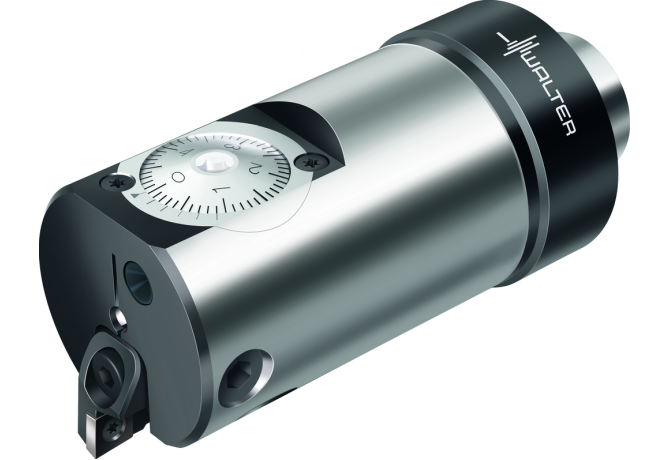

Precision boring tool B3230
HAND Cutting direction
R - Right
ID Technical product number
5027999
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
NCT01C0320$$$$
ISO CSW1
ISO$CP0502003******

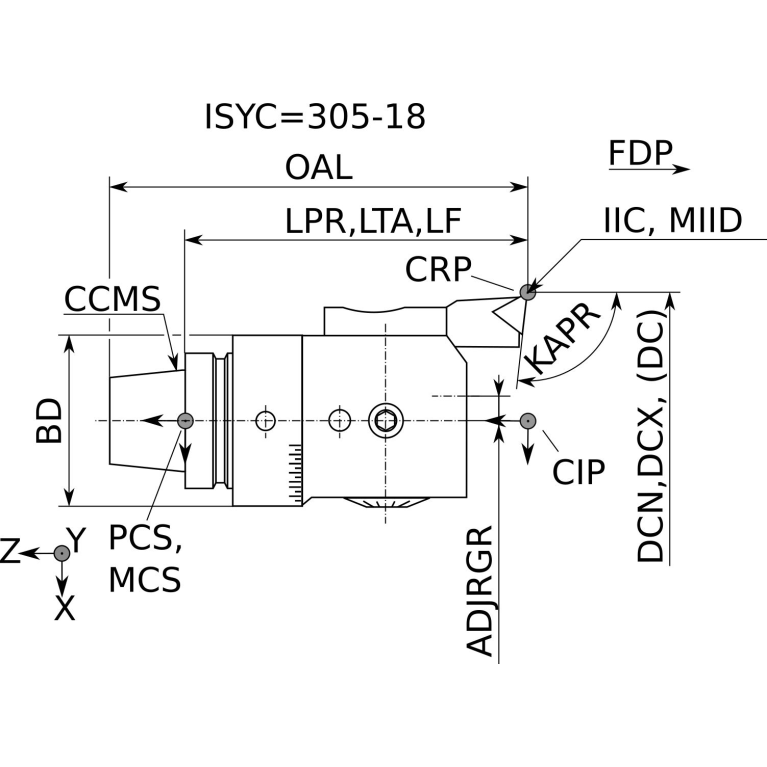

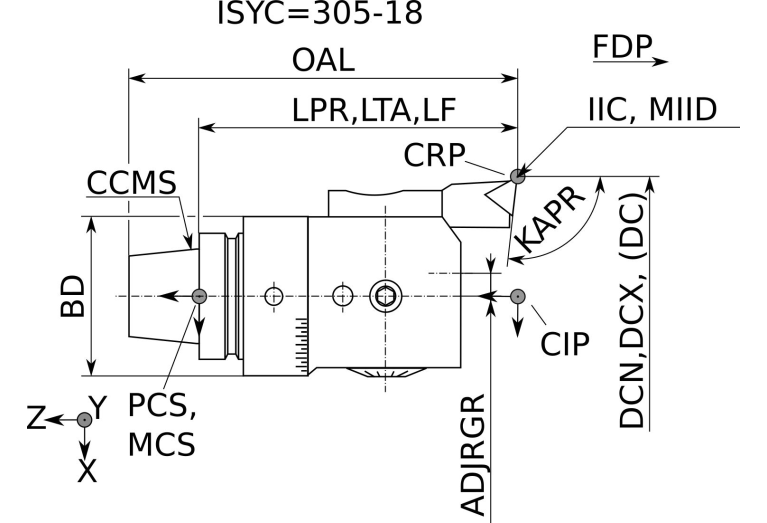

ISYC Subclass
305-18 - Boring head with adjustable unit
KAPR Tool cutting edge angle
93 Degree
LF Functional length
80 mm
LOC-01 ISO
ISO$CP0502003******
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
CP0502993N
LOC-02 ISO
WR$$CP0502**3R*****
LOC-02-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 02)
LOC-02-DIN
W-CP0502**3R*****
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 ISO
NCT01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT03200195
LPR Protruding length
80 mm
Name Identifying order number
B3230.UN3.033-041.Z1CP05
OAL Overall length
87 mm
RPMX Rotational speed maximum
8100 1/min
Working process
No working processes available
WT Weight of item
0.26 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
