Главная Каталог продукции Toolunited 12 301-00 - Thread cutting tap, forming tap, cutting die unspecified 973 61.000

973 61.000

Артикул: 9009730610000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.062 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL03602105

DRVS Drive size

29 mm

FamilyProducts

HSS-E M-GBO KURZ NPT 2 RN FORM C

FHH Flute helix hand

N - Hand of helix neutral

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9009730610000

Interface codes

J6 /

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0360

LOC-03 DCONMS Diameter

36 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03602105

LS Shank length

115.5 mm

Name Identifying order number

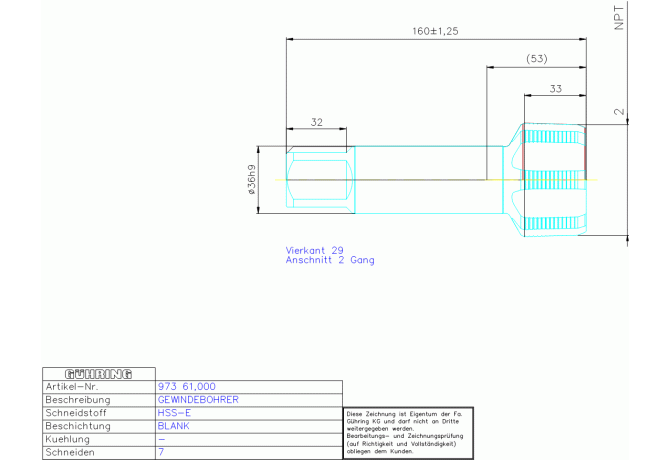

973 61.000

NOF Flute count

OAL Overall length

160 mm

PLCD Gate diameter

55.5 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

WN 20

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

4.418 mm

TDFR Thread diameter nominal fraction

2 in

TDIN Thread diameter nominal inch

2 in

TG Taper ratio

1:16

THFT Thread form type

NPT

THL Thread cutting part length

33 mm

TP Thread pitch

2.209 mm

TPI Threads per inch

11.5 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

1.313 kg
