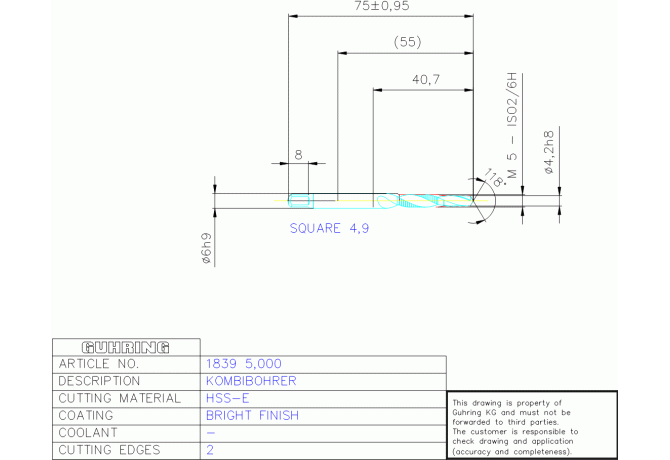

Главная Каталог продукции Toolunited 12 301-00 - Thread cutting tap, forming tap, cutting die unspecified 1839 5.000

1839 5.000

Артикул: 9018390050000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CRCLDIN Tool application class

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00602105

DRVS Drive size

4.9 mm

FamilyProducts

HSS-E KOMBIBOHRER M 5 WN 45RN FORM D

FHA Flute helix angle

26 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

25 mm

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9018390050000

Interface codes

J6 / J61

ISO

ZYL21F6000h$09

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21F6000h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602105

Name Identifying order number

1839 5.000

NOF Flute count

OAL Overall length

75 mm

PLCD Gate diameter

4.13 mm

PLG Plug style

D - Kappa r 8°

STDNO Standard

WN 45

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.4 mm

TCTR Thread tolerance class

ISO2/6H

TD Thread diameter

5 mm

THFT Thread form type

THL Thread cutting part length

18 mm

THOD Thread designation

M5x0.8-ISO2/6H

TP Thread pitch

0.8 mm

TTPID Tap type identifier

Working process

No working processes available

WT Weight of item

0.04 kg
