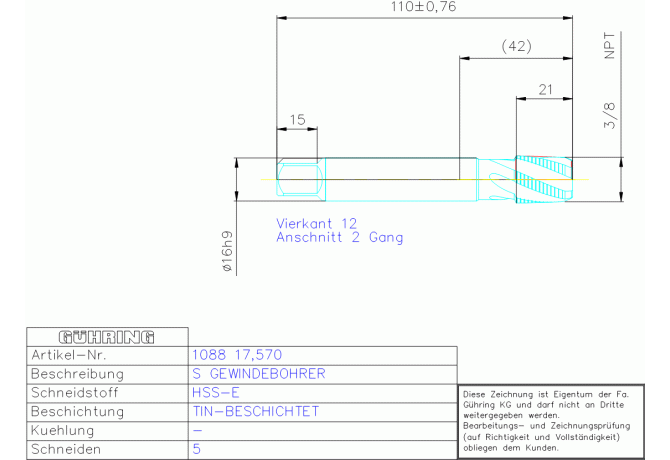

Главная Каталог продукции Toolunited 12 301-00 - Thread cutting tap, forming tap, cutting die unspecified 1088 17.570

1088 17.570

Артикул: 9010880175700

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIN

COMPC Company code

GG - Gühring

CRCLMFG Chip removal class mfg

CXSC Coolant exit style code

0 - Without coolant exit

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL01602105

DRVS Drive size

12 mm

FamilyProducts

HSS-E S-MASCH-GBO 3/8 NPT RN-25 VA

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

118.4 mm

GRDMFG Grade manufacturers designation

HSS-E

GRDPRIO Standard designation of the grade main application

HSS-E

HAND Cutting direction

R - Right

ID Technical product number

9010880175700

Interface codes

J6 / J61

ISO

ZYL21G1600h$09

ISYC Subclass

301-00 - Thread cutting tap, forming tap, cutting die unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL21G1600h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01602105

LS Shank length

74.2 mm

Name Identifying order number

1088 17.570

NOF Flute count

OAL Overall length

110 mm

PLCD Gate diameter

14.2 mm

PLG Plug style

C - Kappa r 15°

STDNO Standard

WN 31

TCDCONMS ISO-tolerance class shank diameter

TCL Tap chamfer length

2.822 mm

TDFR Thread diameter nominal fraction

3/8 in

TDIN Thread diameter nominal inch

0.375 in

TG Taper ratio

1:16

THFT Thread form type

NPT

THL Thread cutting part length

21 mm

TP Thread pitch

1.411 mm

TPI Threads per inch

18 1/in

TTPID Tap type identifier

1 - Machine tap

Working process

No working processes available

WT Weight of item

0.157 kg
