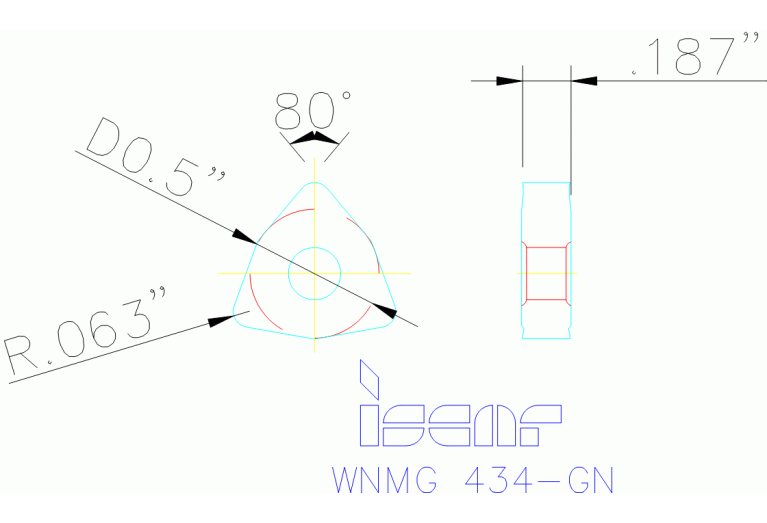

WNMG 080416-GN IC8250

Артикул: 5550550

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

WN0804162N

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided Trigon Inserts for General Applications

GRDMFG Grade manufacturers designation

IC8250

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5550550

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WN0804162NB$$16

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03 ISO

ISO$WN0804162NB$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804162N

Name Identifying order number

WNMG 080416-GN IC8250

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

Working process

No working processes available

WT Weight of item

0.01 kg
