Главная Каталог продукции Toolunited 12 201-07 - Trigon insert WNMG 080412-PP IC30N

WNMG 080412-PP IC30N

Артикул: 5502914

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

WN0804122N

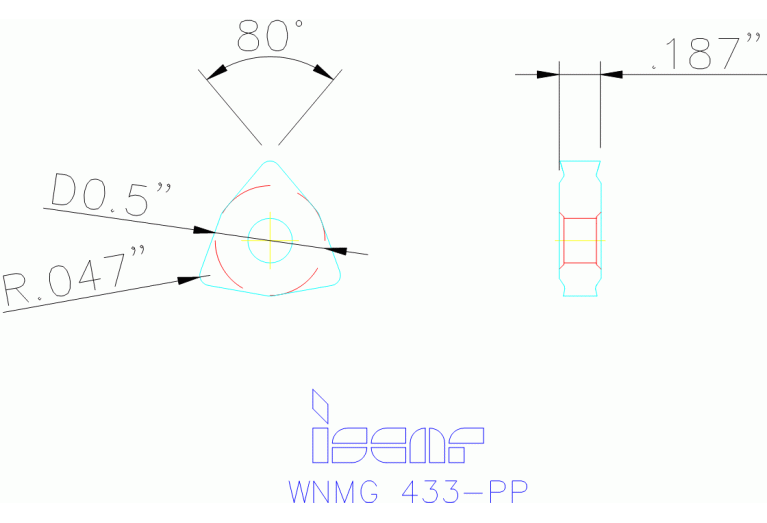

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided Trigon Inserts for Machining Very Ductile Materials at Medium Cutting Conditions

GRDMFG Grade manufacturers designation

IC30N

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5502914

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WN0804122NB$$12

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

8.7 mm

LOC-03 ISO

ISO$WN0804122NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN0804122N

Name Identifying order number

WNMG 080412-PP IC30N

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

Working process

No working processes available
