Главная Каталог продукции Toolunited 12 201-07 - Trigon insert WNMG 06T304-WG IC20N

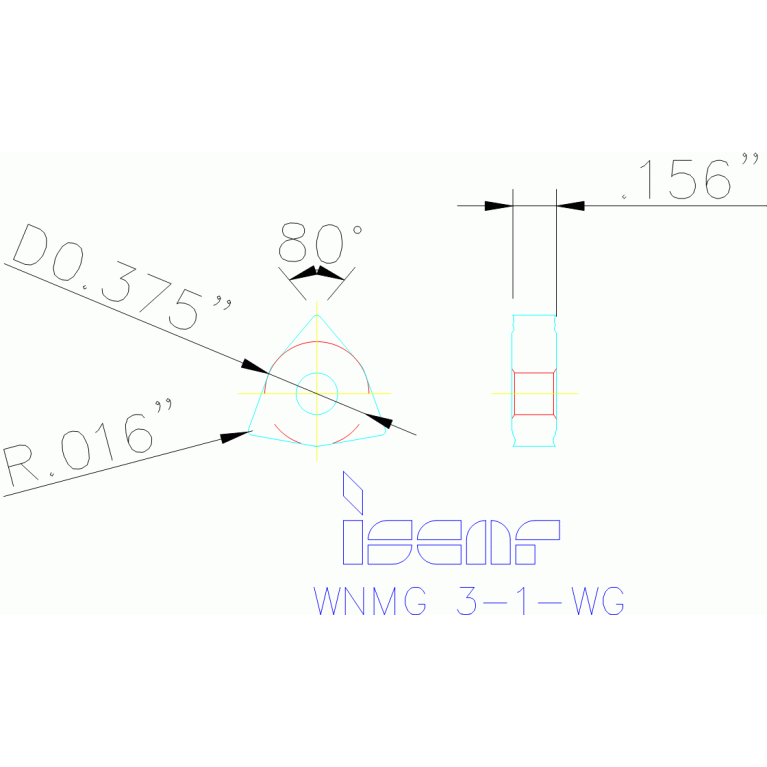

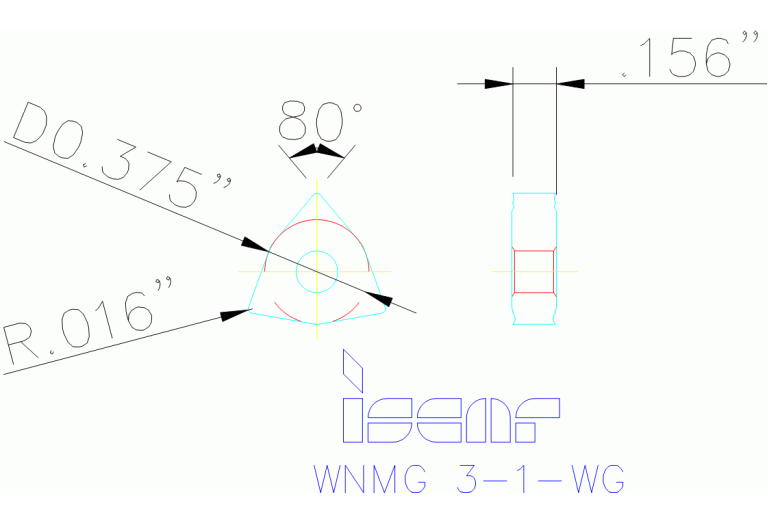

WNMG 06T304-WG IC20N

Артикул: 5595834

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

WN06T3042N

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided Trigon Wiper Inserts for High Surface Finish at High Feed Turning

GRDMFG Grade manufacturers designation

IC20N

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5595834

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WN06T3042NBLZ04

ISYC Subclass

201-07 - Trigon insert

KRINS Cutting edge angle major

95 Degree

L Cutting edge length

6.52 mm

LOC-03 ISO

ISO$WN06T3042NBLZ04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN06T3042N

Name Identifying order number

WNMG 06T304-WG IC20N

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

Working process

No working processes available
