Главная Каталог продукции Toolunited 12 201-07 - Trigon insert WNMG 06T304-M3P IC830

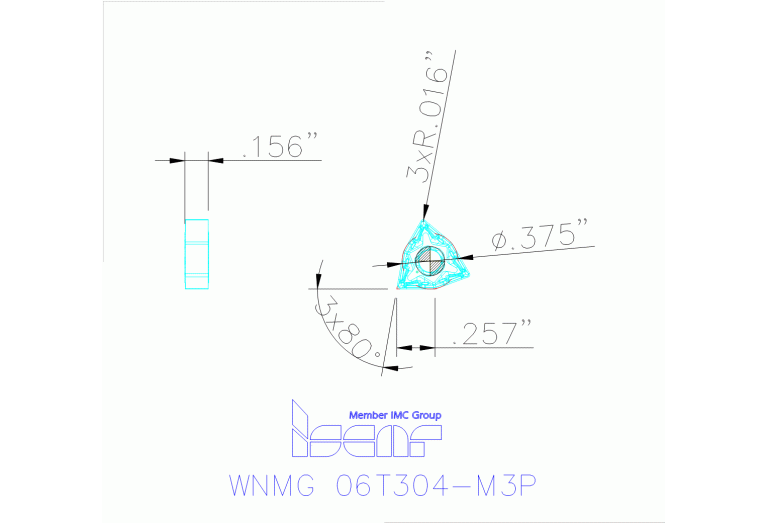

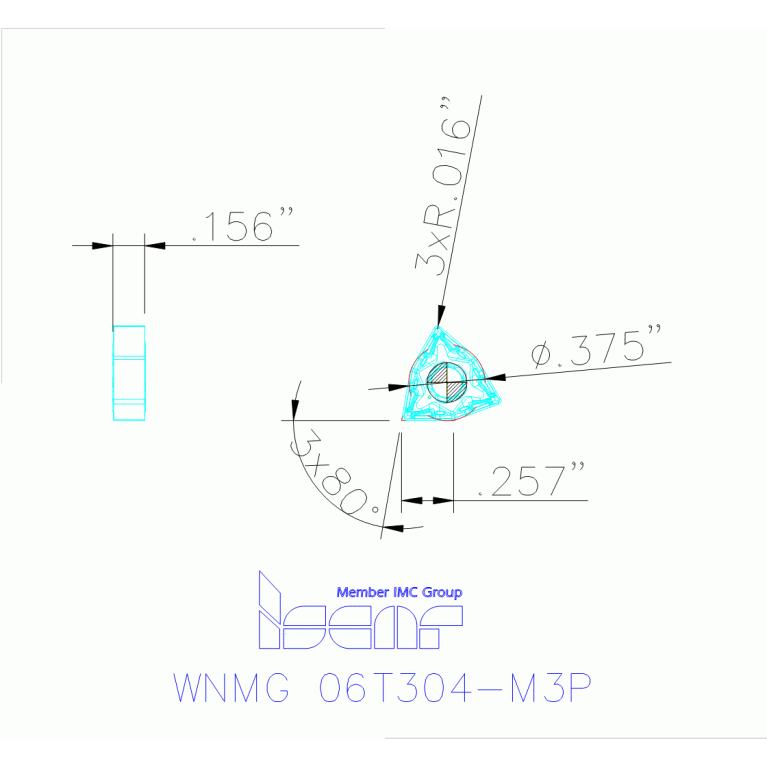

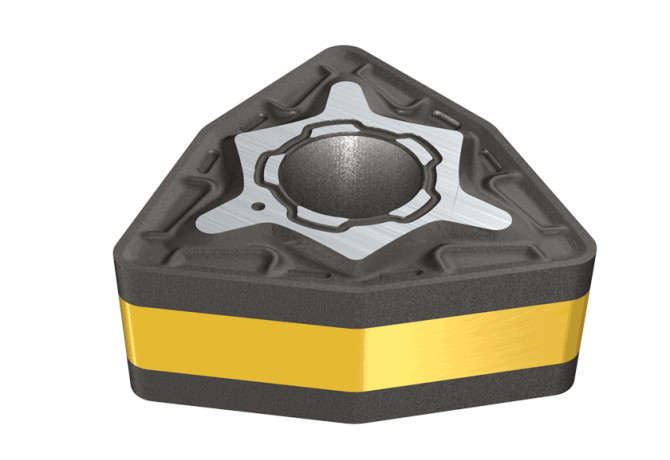

WNMG 06T304-M3P IC830

Артикул: 3328805

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

M3P

CECC Cutting edge condition code

E - Rounded

COATN Coating

AlTiN+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

WN06T3042N

EPSR Insert included angle

80 Degree

FamilyProducts

Double-Sided Trigon Inserts for Medium Machining Conditions on Steel

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

9.52 mm

ID Technical product number

3328805

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WN06T3042NB$$04

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

6.52 mm

LOC-03 ISO

ISO$WN06T3042NB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WN06T3042N

Name Identifying order number

WNMG 06T304-M3P IC830

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

Working process

No working processes available
