Главная Каталог продукции Toolunited 12 201-07 - Trigon insert WCMT040202-MP MC6115

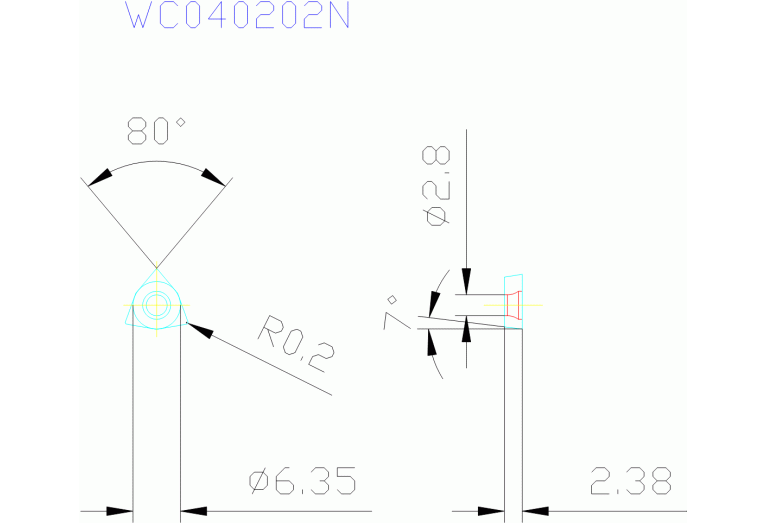

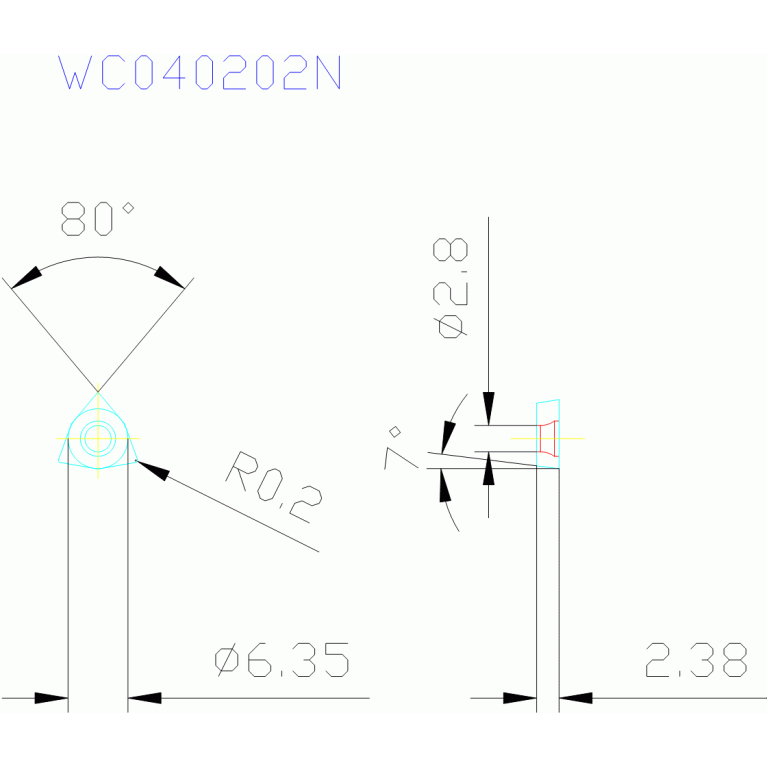

WCMT040202-MP MC6115

Артикул: 23033245

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

Accumulated TiCN-Al2

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

5/21/2023

EPSR Insert included angle

80 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

MC6115

IC Inscribed circle diameter

6.35 mm

ID Technical product number

23033245

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC0402023NB$$02

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

4.34 mm

LOC-03 ISO

ISO$WC0402023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

Name Identifying order number

WCMT040202-MP MC6115

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

WCMT21.50.5MP

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
