Главная Каталог продукции Toolunited 12 201-07 - Trigon insert WCMT030202-RP4 WPP20G

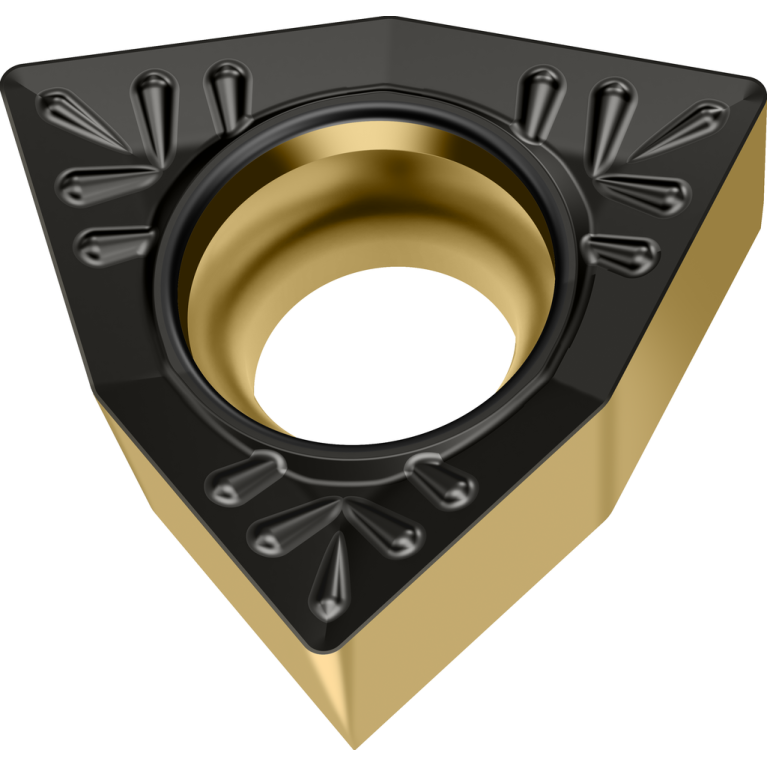

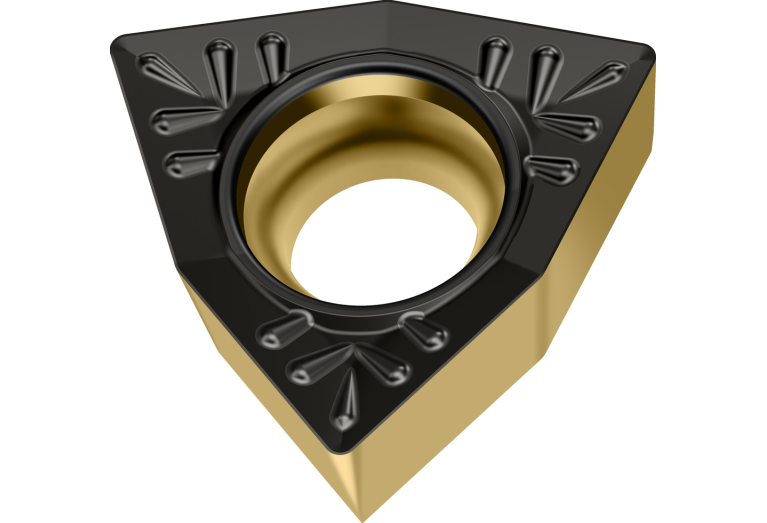

WCMT030202-RP4 WPP20G

Артикул: 8205033

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

RP4

CECC Cutting edge condition code

E - Rounded

COATN Coating

TiCN+Al2O3+(TiN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.5 mm

Delivery state valid from

12/1/2023

DIN

WC0302023N

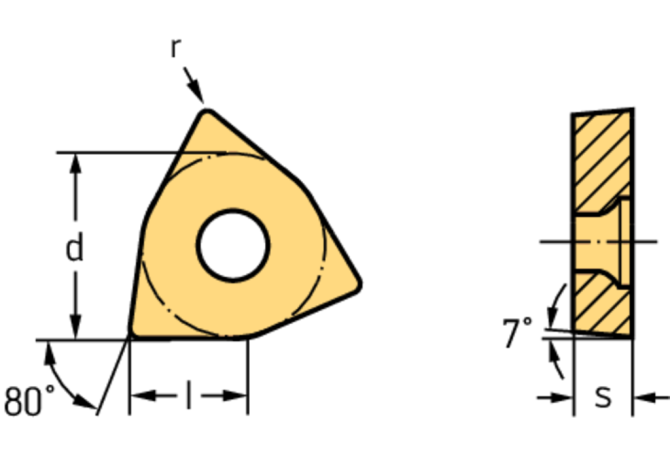

EPSR Insert included angle

80 Degree

FamilyProducts

Positive Trigon 80° WCMT

GRDMFG Grade manufacturers designation

WPP20G

IC Inscribed circle diameter

5.556 mm

ID Technical product number

8205033

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$WC0302023NB$$02

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.909 mm

LOC-03 ISO

ISO$WC0302023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

WC0302023N

MIID Master insert identification

WCMT030202 WPP20G

Name Identifying order number

WCMT030202-RP4 WPP20G

NameAnsi Identifying order number inch alternative

WCMT1.8(1.5)0.5-RP4 WPP20G

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.381 mm

S1 Insert thickness total

2.381 mm

STDDES Standard designation

WCMT030202

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.001 kg
