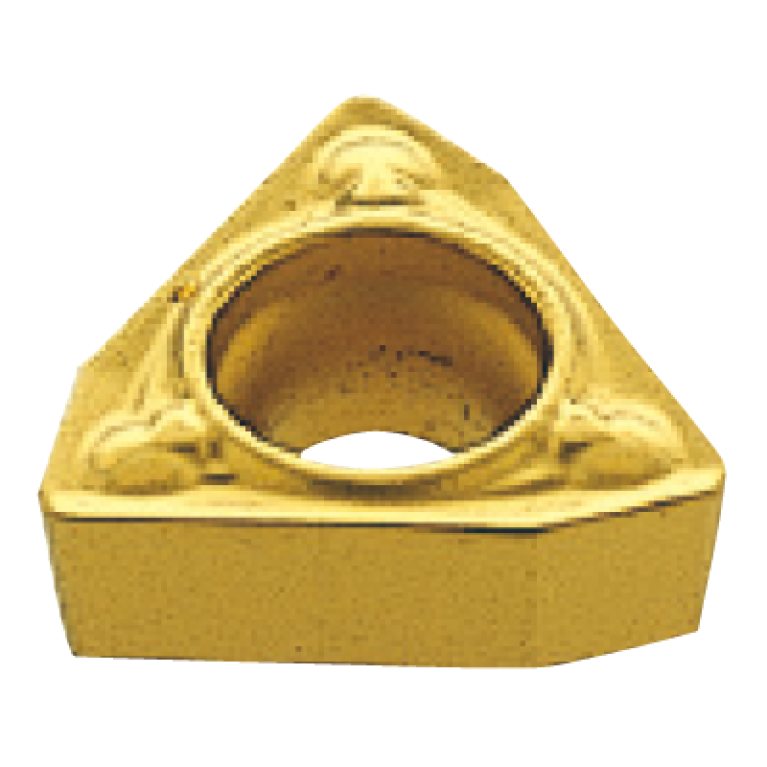

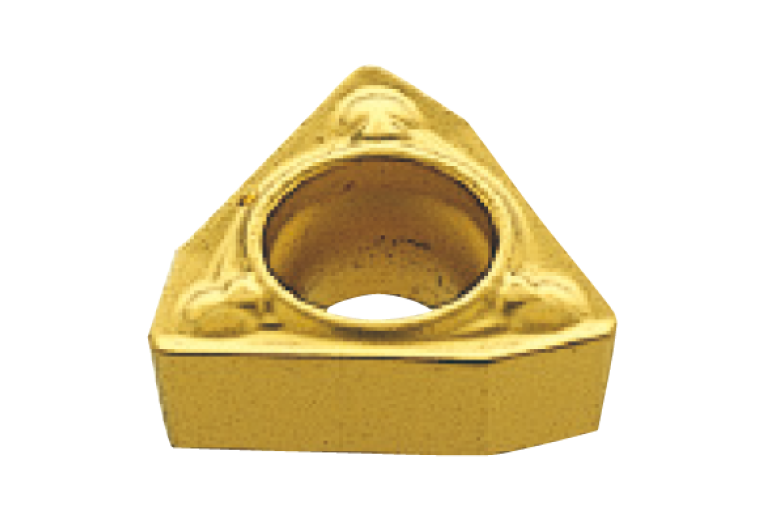

WBMTL30204R-MV MC6125
WBMTL30204R-MV MC6125
Артикул:
23078130
В наличии
Характеристики

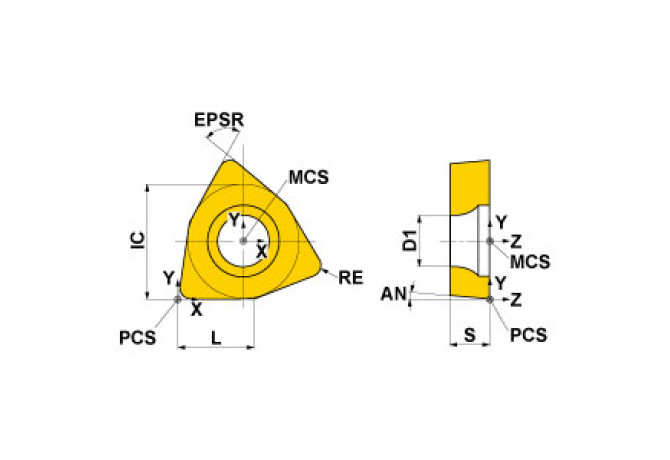

AN Clearance angle major
5 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
MV
CECC Cutting edge condition code
E - Rounded
COATN Coating
Accumulated TiCN-Al2
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
2.3 mm
Delivery state valid from
5/21/2023
EPSR Insert included angle
80 Degree
FamilyProducts
Turning insert (Positive)
GRDMFG Grade manufacturers designation
MC6125
IC Inscribed circle diameter
4.76 mm
ID Technical product number
23078130
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
/
ISISO ISO property
0
ISYC Subclass
201-07 - Trigon insert
L Cutting edge length
3.26 mm
Name Identifying order number
WBMTL30204R-MV MC6125
NOI Insert index count
3
RE Corner radius
0.4 mm
S Insert thickness
2.38 mm
STDDESAnsi Standard designation ANSI
WBMT1.51.51RMV
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
