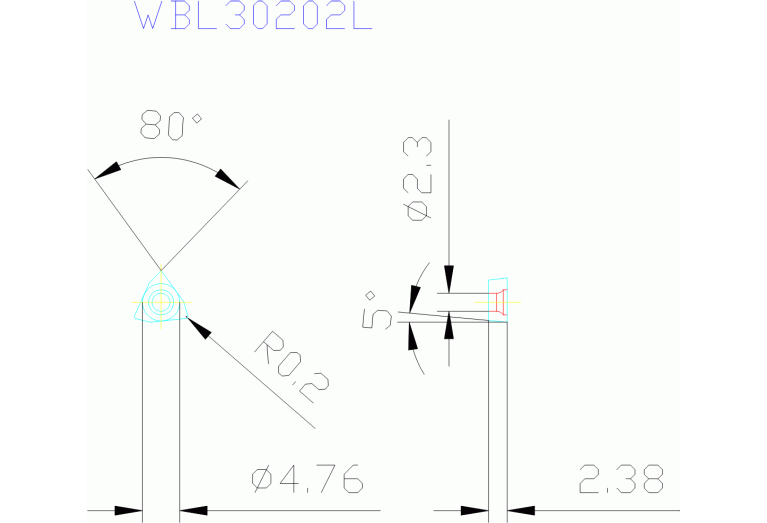

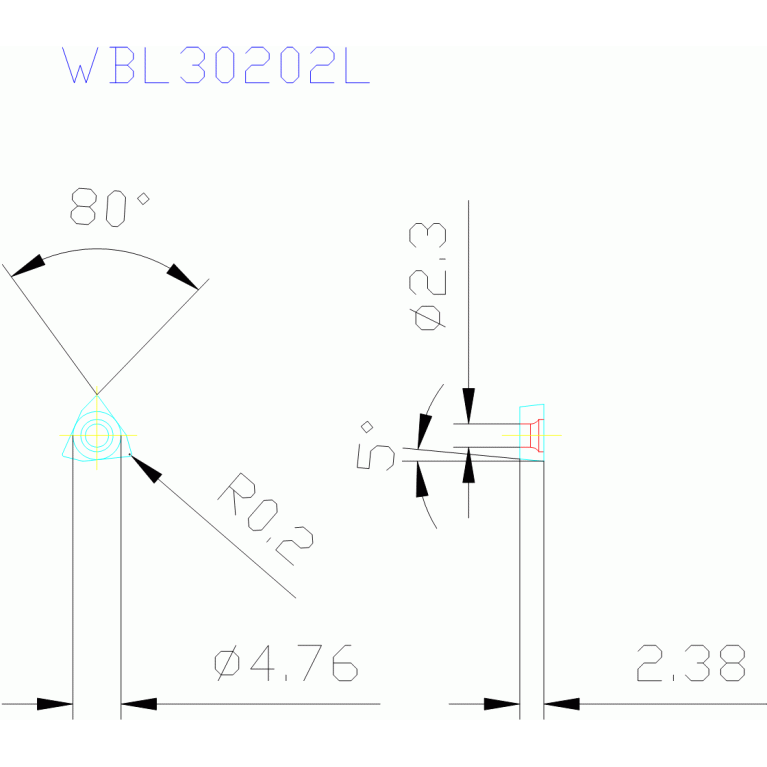

WBMTL30202L-MV MC6125

Артикул: 23078109

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

5 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating

Accumulated TiCN-Al2

COMPC Company code

MI - Mitsubishi Materials

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

5/21/2023

EPSR Insert included angle

80 Degree

FamilyProducts

Turning insert (Positive)

GRDMFG Grade manufacturers designation

MC6125

IC Inscribed circle diameter

4.76 mm

ID Technical product number

23078109

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

ISISO ISO property

ISYC Subclass

201-07 - Trigon insert

L Cutting edge length

3.26 mm

Name Identifying order number

WBMTL30202L-MV MC6125

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

STDDESAnsi Standard designation ANSI

WBMT1.51.50.5LMV

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
