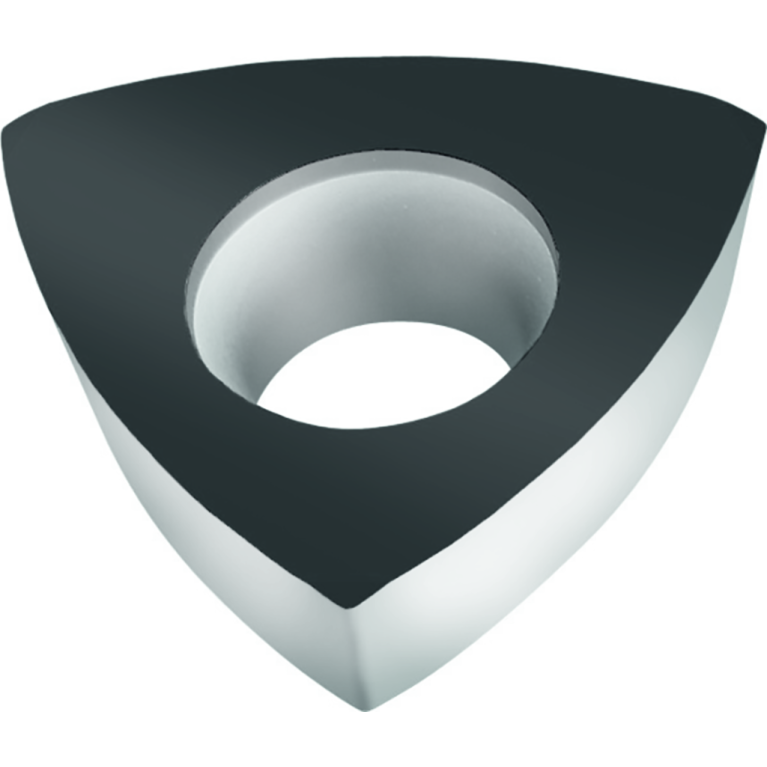

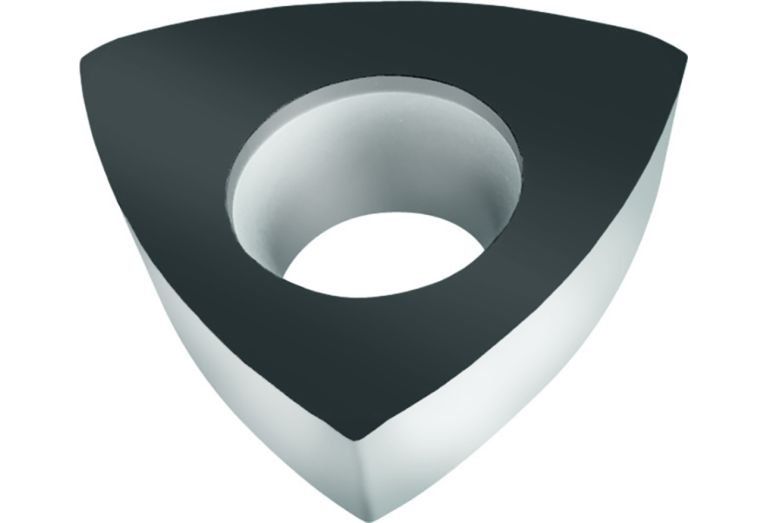

P26315R16 WSP45G
P26315R16 WSP45G
Артикул:
8112886
В наличии
Характеристики
AN Clearance angle major
14 Degree
CBMD Chip breaker manufacturers designation
D57
CECC Cutting edge condition code
S - Chamfered and rounded
CEMR Cutting edge major radius
16 mm
COATN Coating
TiAlN+Al2O3+(ZrN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
W-P216T3$$3NB$M$$
EPSR Insert included angle
60 Degree
FamilyProducts
Positive triangular P26315
GRDMFG Grade manufacturers designation
WSP45G
IC Inscribed circle diameter
10.5 mm
ID Technical product number
8112886
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$P216T3$$3NB$M$$
ISYC Subclass
201-07 - Trigon insert
LOC-03 ISO
WR$$P216T3$$3NB$M$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-P216T3$$3NB$M$$
Name Identifying order number
P26315R16 WSP45G
NOI Insert index count
3
RE Corner radius
0.6 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.97 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
FPL - Face milling
WT Weight of item
0.004 kg
