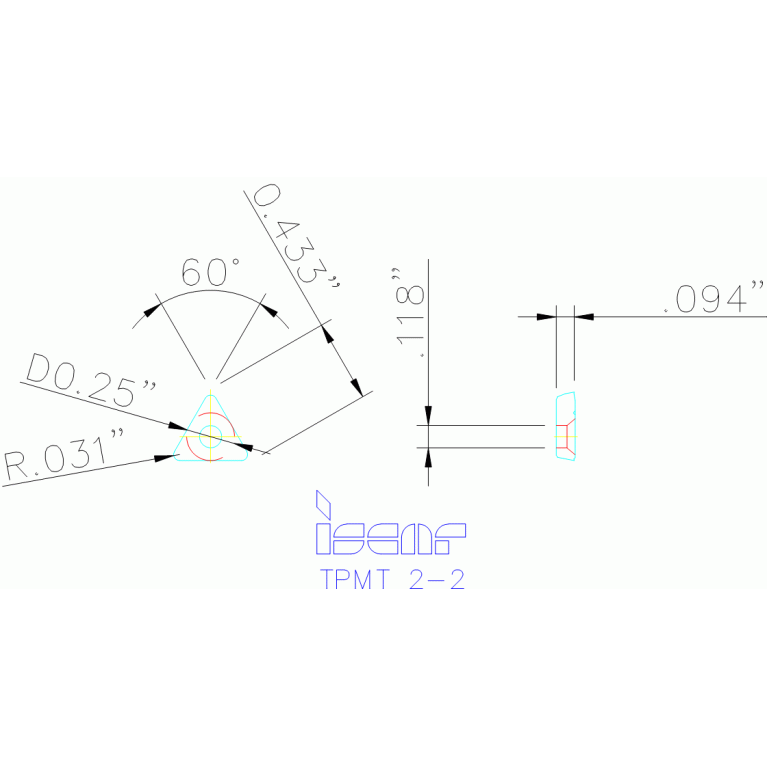

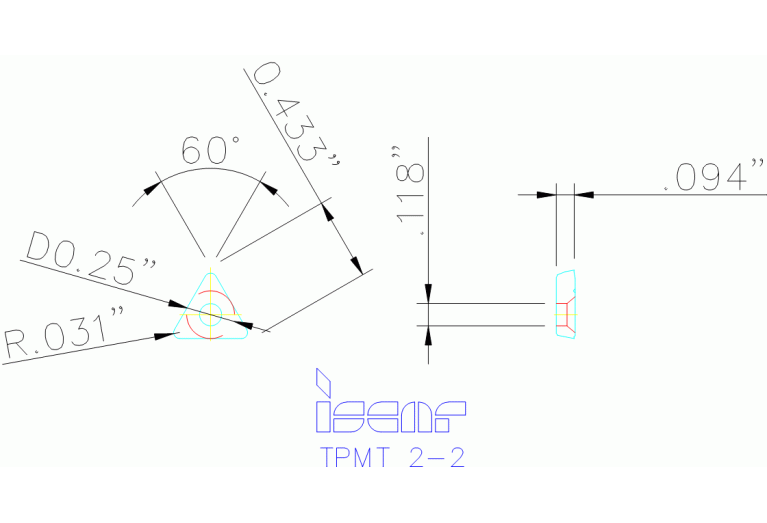

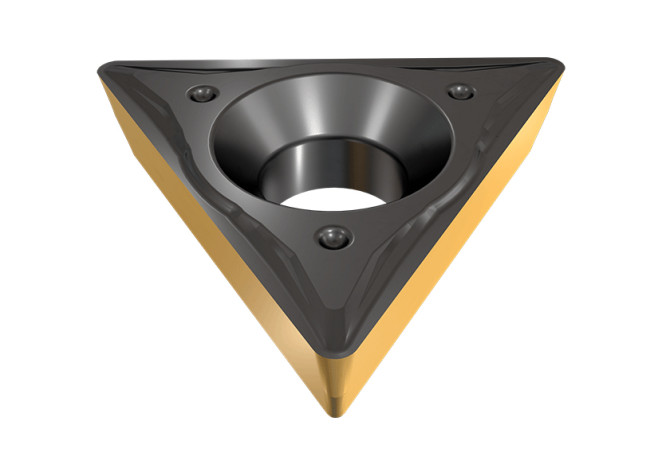

TPMT 110208 IC830

Артикул: 3308110

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

AlTiN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

3 mm

Delivery state valid from

4/1/2022

DIN

TP1102083N

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular 11° Positive Inserts with a Positive Chipformer Exerting Low Cutting Forces for Internal Finish Turning

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

6.35 mm

ID Technical product number

3308110

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TP1102083NB$$08

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03 ISO

ISO$TP1102083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1102083N

Name Identifying order number

TPMT 110208 IC830

RE Corner radius

0.8 mm

S Insert thickness

2.38 mm

Working process

No working processes available
