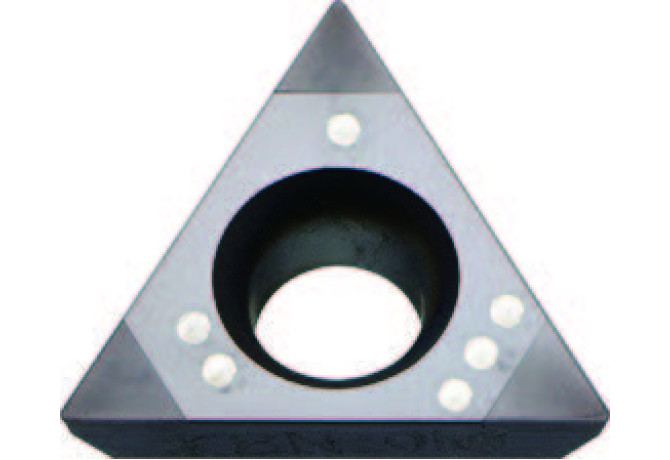

TPGB160308S01035MET KBN020

Артикул: TFC00108

В наличии

В корзину

Описание

Характеристики

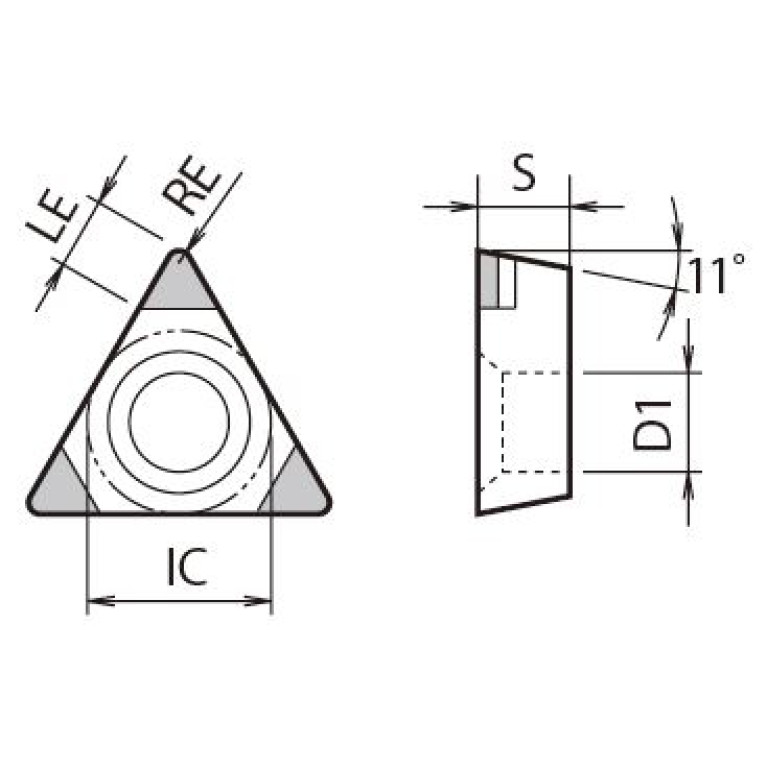

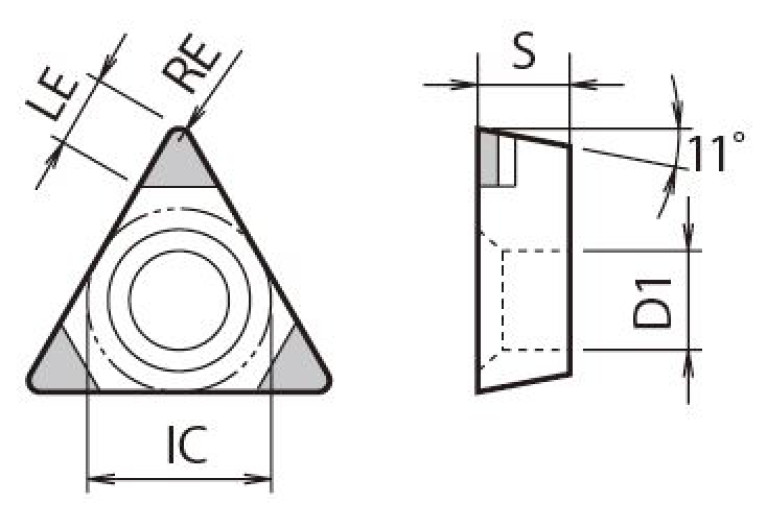

AN Clearance angle major

11 Degree

COATN Coating / Покрытие

MEGACOAT TOUGH CBN

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

H15

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

2/1/2022

DIN

TP1603084N

EPSR Insert included angle

60 Degree

FamilyProducts

CBN for Machining Hardened Material

GRDMFG Grade manufacturers designation

KBN020

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

9.525 mm

ID Technical product number

TFC00108

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.498 mm

LE Cutting edge effective length

1.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TP1603084N

MIID Master insert identification

TPGB160308S01035MET KBN020

Name Identifying order number

TPGB160308S01035MET KBN020

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

STDDES Standard designation

TPGB160308S01035MET

STDDESAnsi Standard designation ANSI

TPGB322S01035MET

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
