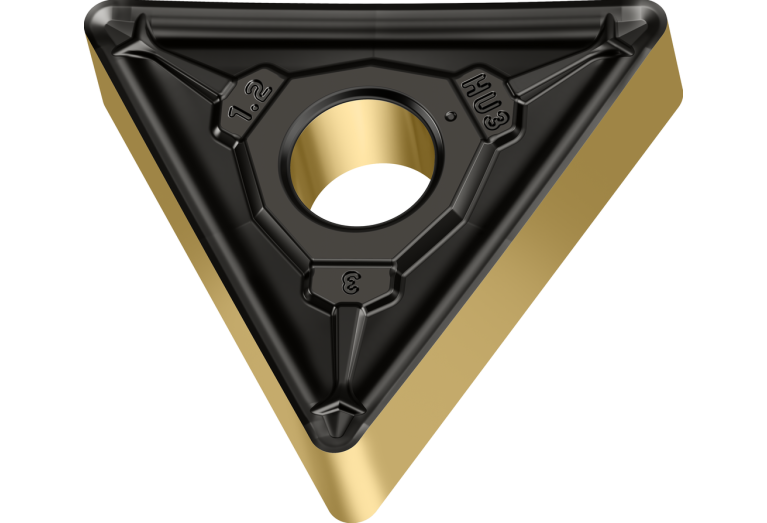

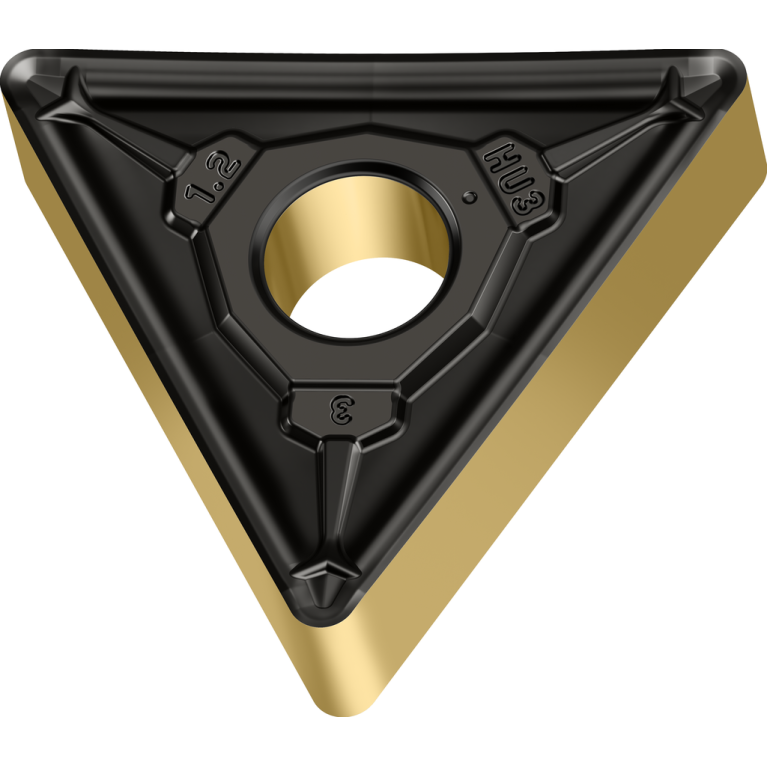

TNMM160412-HU3 WPP20G

TNMM160412-HU3 WPP20G TNMM160412-HU3 WPP20G TNMM160412-HU3 WPP20G

TNMM160412-HU3 WPP20G

Walter
Артикул: 8138397
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
HU3
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
3.81 mm
Delivery state valid from
12/1/2023
DIN
TN1604122N
EPSR Insert included angle
60 Degree
FamilyProducts
Negative triangular 60° TNMM
GRDMFG Grade manufacturers designation
WPP20G
IC Inscribed circle diameter
9.525 mm
ID Technical product number
8138397
IFS Insert mounting style code
2 - With cylindrical bore
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
1
ISO
ISO$TN1604122NB$$12
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.498 mm
LOC-03 ISO
ISO$TN1604122NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
TN1604122N
MIID Master insert identification
TNMM160412 WPP20G
Name Identifying order number
TNMM160412-HU3 WPP20G
NameAnsi Identifying order number inch alternative
TNMM333-HU3 WPP20G
NOI Insert index count
3
RE Corner radius
1.2 mm
S Insert thickness
4.762 mm
S1 Insert thickness total
4.762 mm
STDDES Standard designation
TNMM160412
STDDESAnsi Standard designation ANSI
TNMM333
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.006 kg
