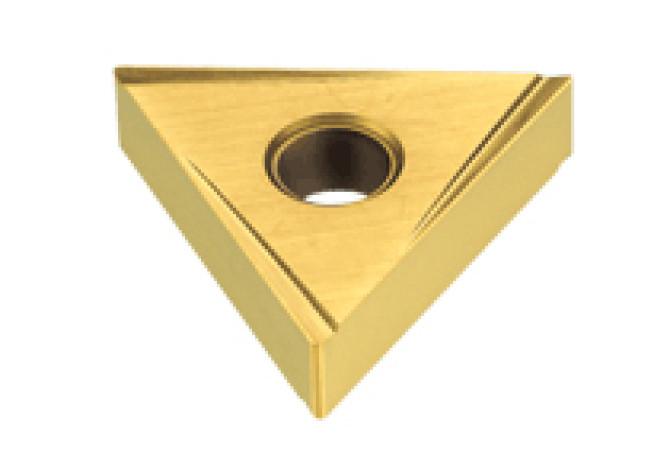

TNGZ 160404R IC570

Артикул: 6708031

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiCN+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

TN1604042R

EPSR Insert included angle

60 Degree

FamilyProducts

Double-Sided Triangular Inserts for Medium and Finishing Applications

GRDMFG Grade manufacturers designation

IC570

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6708031

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TN1604042RB$$04

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.5 mm

LOC-03 ISO

ISO$TN1604042RB$$04

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TN1604042R

Name Identifying order number

TNGZ 160404R IC570

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

Working process

No working processes available

WT Weight of item

0.01 kg
