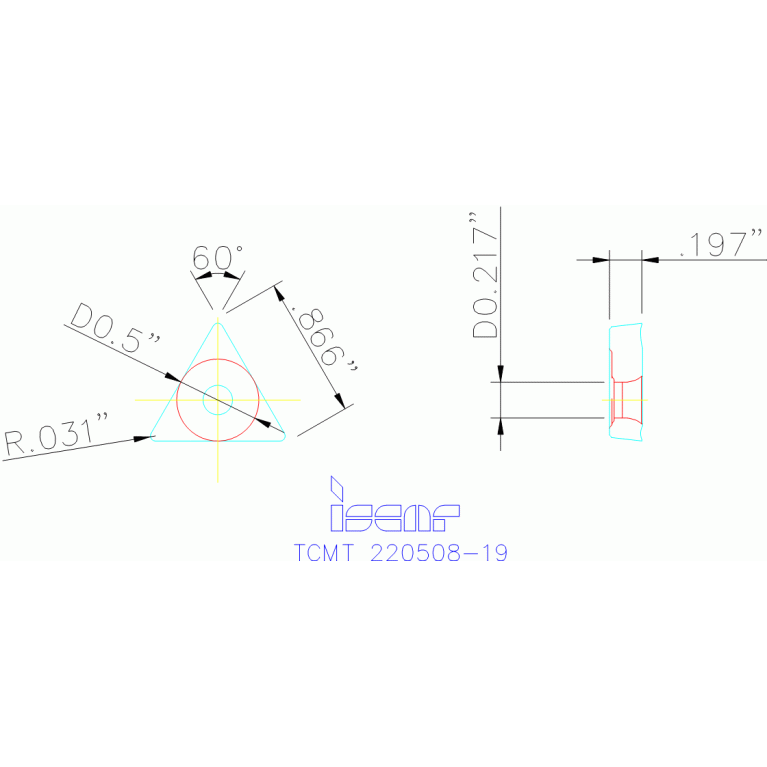

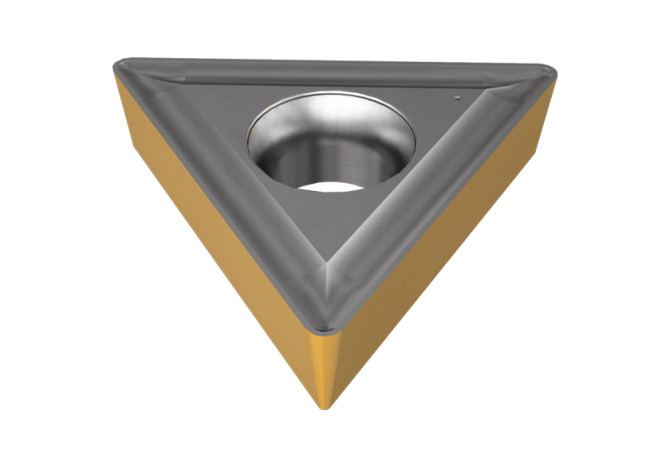

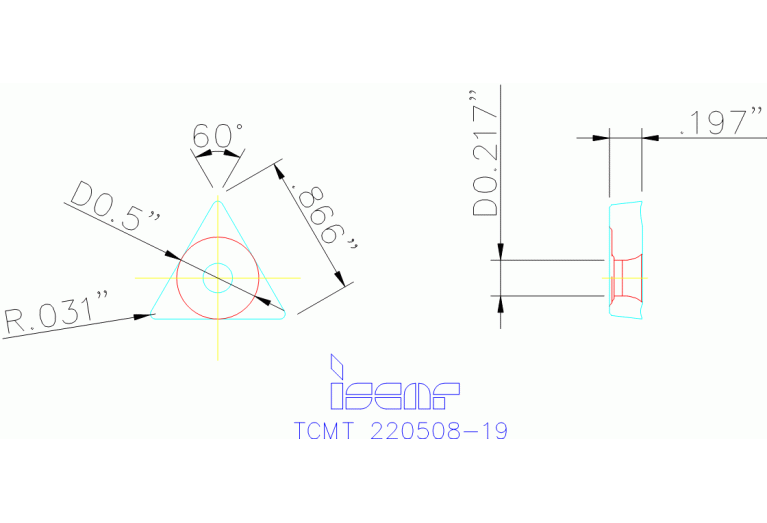

TCMT 220508-19 IC50M

Артикул: 5600287

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

TC2205083N

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular Inserts with a 7° Positive Flat Rake for Semi-Roughing Applications at Medium to High Feeds

GRDMFG Grade manufacturers designation

IC50M

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5600287

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TC2205083NB$$08

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

22 mm

LOC-03 ISO

ISO$TC2205083NB$$08

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC2205083N

Name Identifying order number

TCMT 220508-19 IC50M

RE Corner radius

0.8 mm

S Insert thickness

5 mm

Working process

No working processes available
