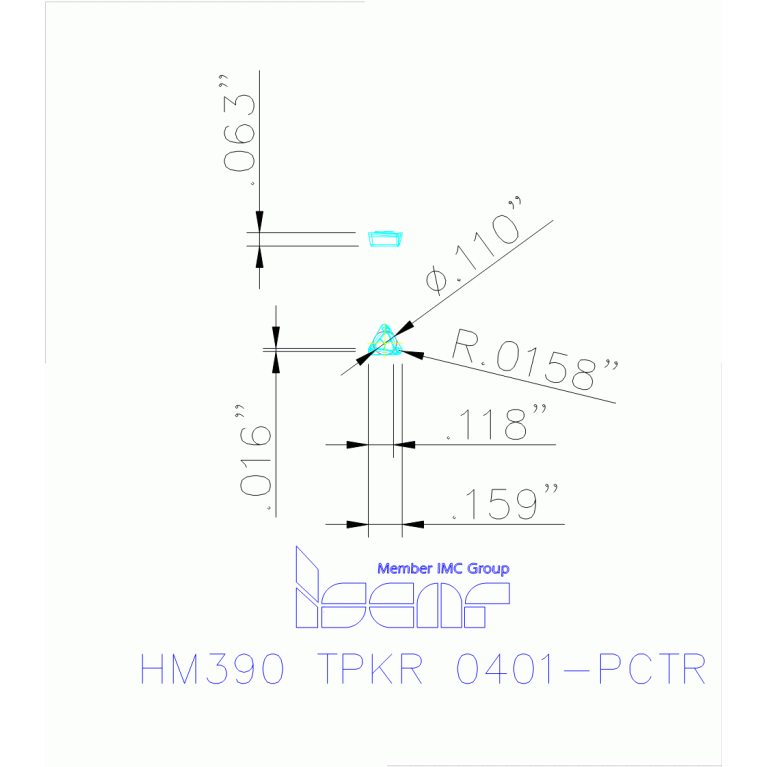

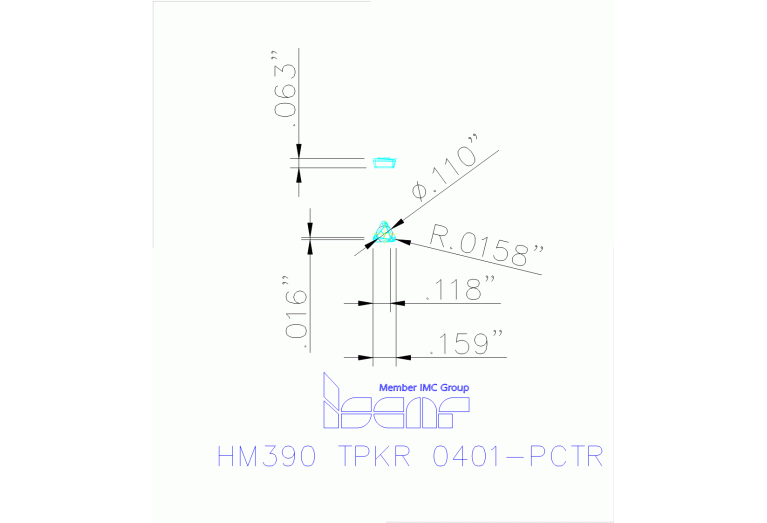

HM390 TPKR 0401-PCTR IC808
HM390 TPKR 0401-PCTR IC808
Артикул:
3344543
В наличии
Характеристики
BS Wiper edge length
0.4 mm
COATN Coating
TiAlN/AlTiN+TiN
COMPC Company code
IS - Iscar
Delivery state valid from
4/1/2022
DIN
IS-88782876514500
FamilyProducts

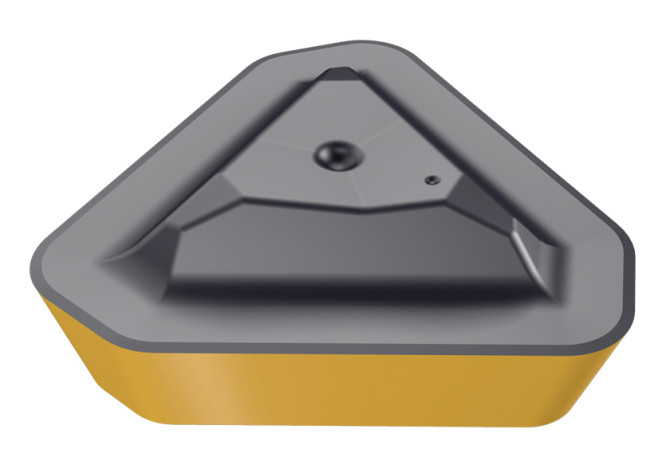

Triangular Miniature Inserts with 3 Helical Cutting Edges for 90° Shoulders
GRDMFG Grade manufacturers designation
IC808
IC Inscribed circle diameter
2.8 mm
ID Technical product number
3344543
Interface codes
J6 / J441
ISISO ISO property
0
ISO
IS$$88782876514500
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
4 mm
LE Cutting edge effective length
3 mm
LOC-03 ISO
IS$$88782876514500
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IS-88782876514500
Name Identifying order number
HM390 TPKR 0401-PCTR IC808
RE Corner radius
0.4 mm
S Insert thickness
1.6 mm
Working process
No working processes available
