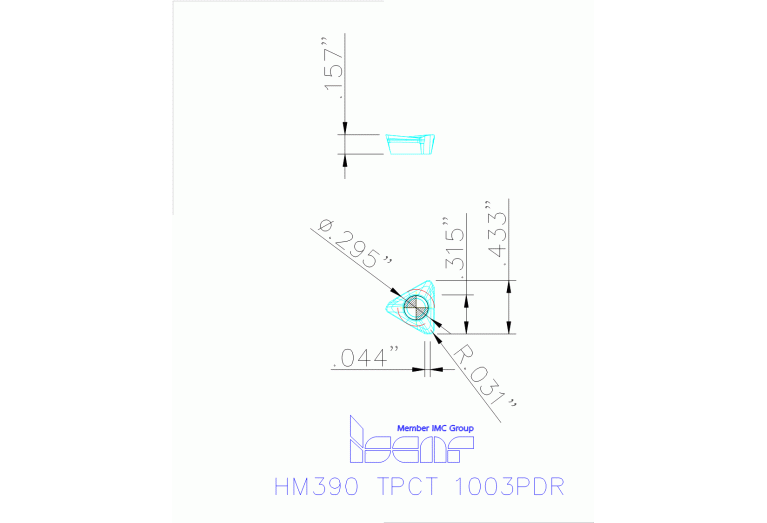

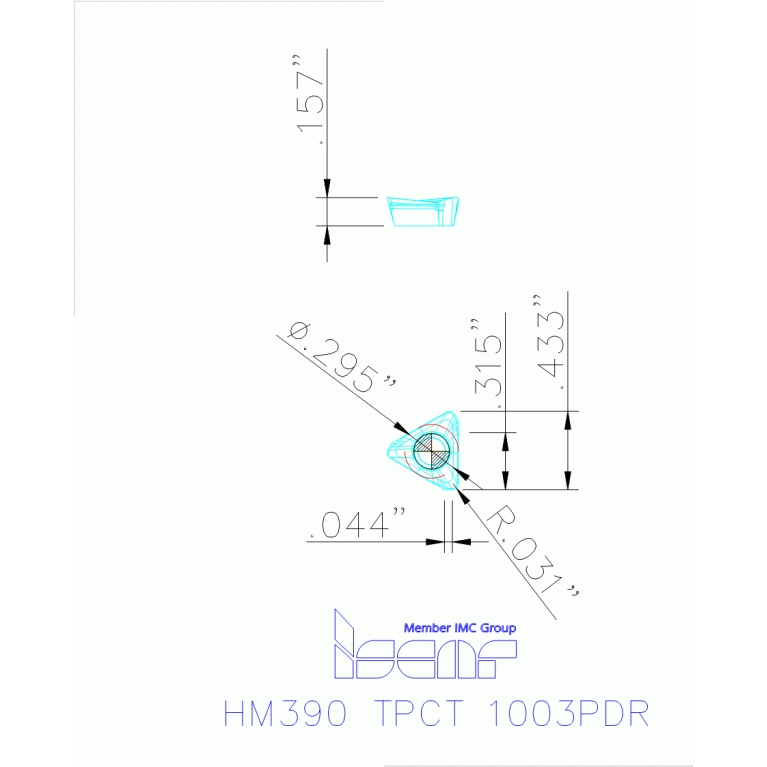

HM390 TPCT 1003PDR IC810

Артикул: 5607517

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1.1 mm

CBMD Chip breaker manufacturers designation

PDR

CECC Cutting edge condition code

T - Chamfered

COATN Coating

AlTiCrN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.4 mm

Delivery state valid from

4/1/2022

DIN

IS-607697345849240

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular Inserts with 3 Helical Cutting Edges for 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC810

IC Inscribed circle diameter

7.5 mm

ID Technical product number

5607517

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$607697345849240

ISYC Subclass

201-01 - Triangle insert

LE Cutting edge effective length

8 mm

LOC-03 ISO

IS$$607697345849240

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-607697345849240

Name Identifying order number

HM390 TPCT 1003PDR IC810

RE Corner radius

0.8 mm

S Insert thickness

4 mm

Working process

No working processes available
