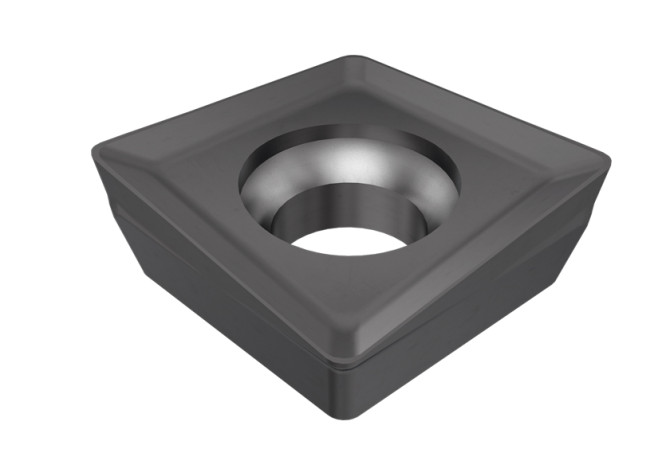

XPMT 100408-HQ IC4050

Артикул: 5603417

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

EPSR Insert included angle

90 Degree

FamilyProducts

Insert with 2 Right- or Left-Hand Cutting Edges with Positive or Reinforced Land

GRDMFG Grade manufacturers designation

IC4050

IC Inscribed circle diameter

10.2 mm

ID Technical product number

5603417

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

10.2 mm

Name Identifying order number

XPMT 100408-HQ IC4050

RE Corner radius

0.6 mm

S Insert thickness

4.12 mm

Working process

No working processes available
