Главная Каталог продукции Toolunited 12 201-02 - Square insert SOMT100420ER-GH PR1835

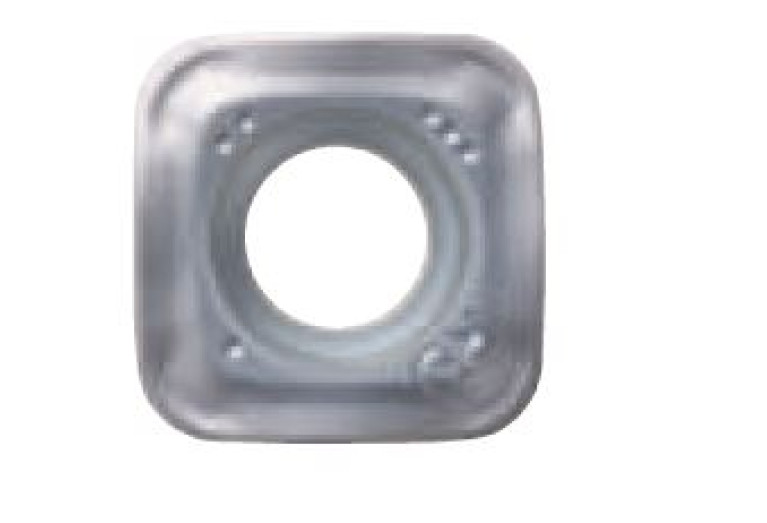

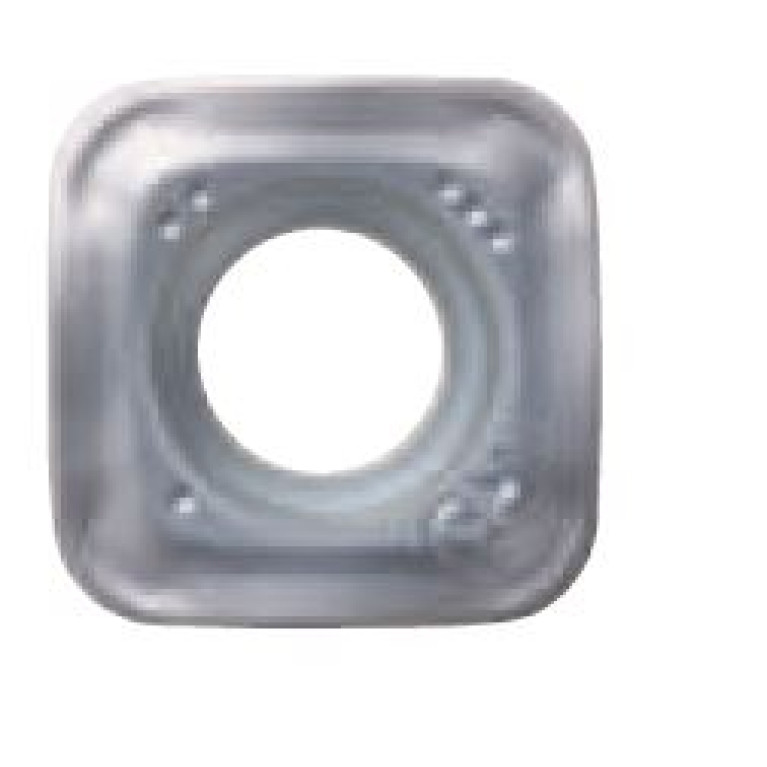

SOMT100420ER-GH PR1835

Артикул: TLU00088

В наличии

В корзину

Описание

Характеристики

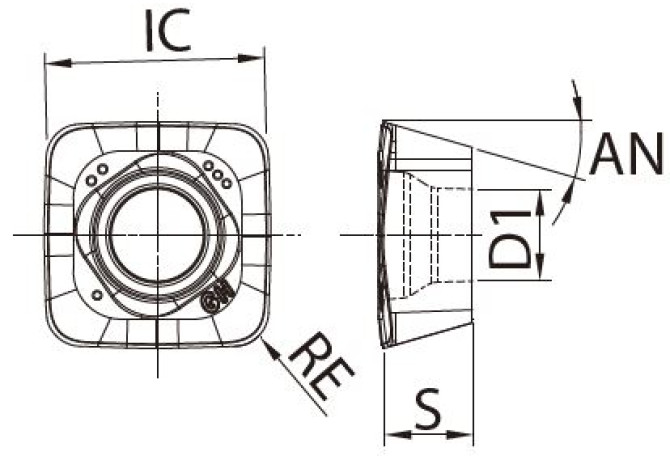

AN Clearance angle major

16 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

MGACOAT NANO EX

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

M30

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.55 mm

Delivery state valid from

4/21/2023

EPSR Insert included angle

90 Degree

FamilyProducts

MFH Harrier insert for milling

GRDMFG Grade manufacturers designation

PR1835

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

10.45 mm

ID Technical product number

TLU00088

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

10.45 mm

Name Identifying order number

SOMT100420ER-GH PR1835

NOI Insert index count

RE Corner radius

2 mm

S Insert thickness

4.58 mm

TCINS Tolerance class insert

Working process

No working processes available
