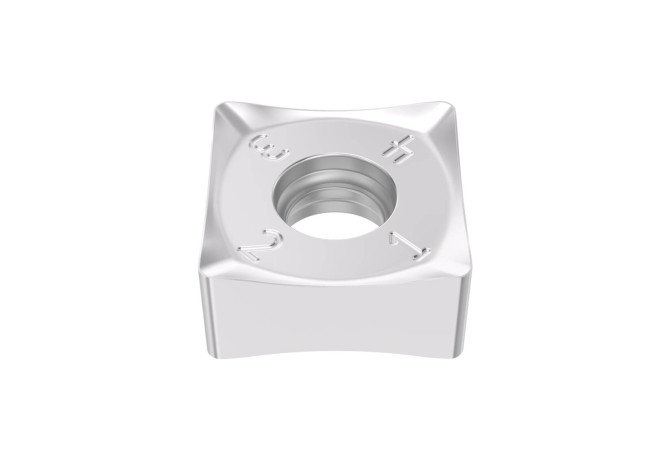

SNMU160610TN-M10 MP1501

SNMU160610TN-M10 MP1501

Seco
Артикул: 03272950
В наличии
В корзину
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
SO - SECO Tools
CSP Coolant supply property
0 - Without coolant supply
Delivery state valid from
3/22/2022
DIN
SN1606103N
EPSR Insert included angle
90 Degree
FamilyProducts
SNMU160610TN-M10 MP1501
GAN Insert rake angle
20 Degree
GRDMFG Grade manufacturers designation
MP1501

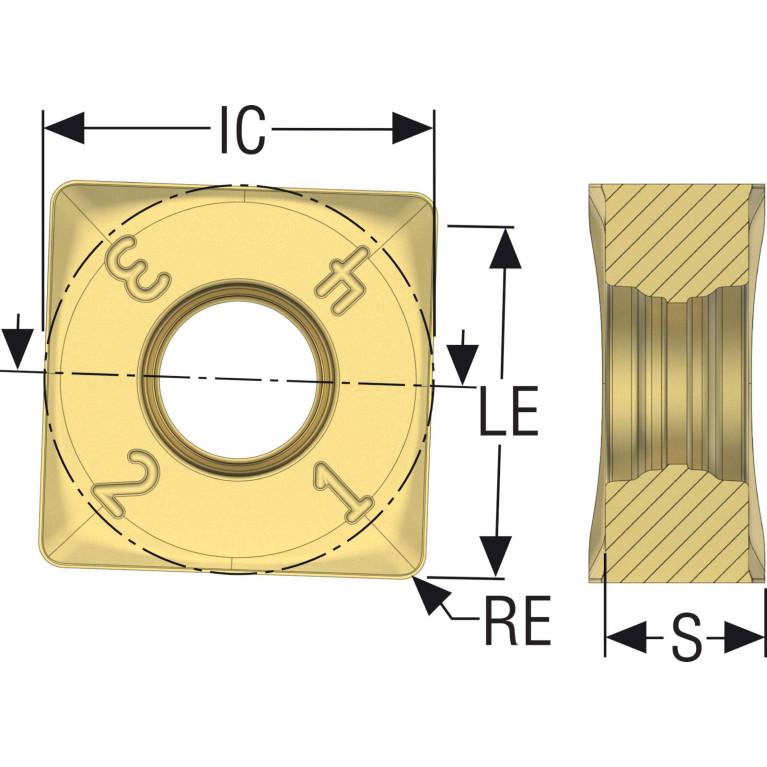

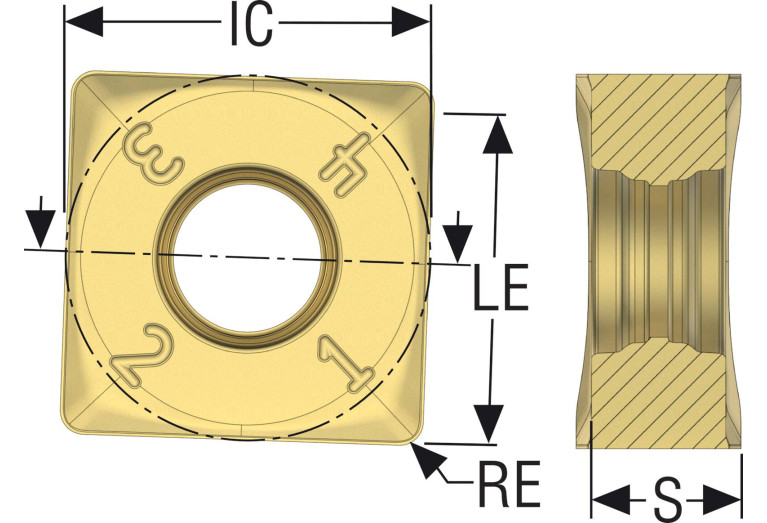

IC Inscribed circle diameter
16 mm
ID Technical product number
03272950
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
1
ISYC Subclass
201-02 - Square insert
L Cutting edge length
16 mm
LE Cutting edge effective length
14.9 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SN1606103N
MIID Master insert identification
SNMU160610TN MP1501
Name Identifying order number
SNMU160610TN-M10 MP1501
RE Corner radius
1 mm
S Insert thickness
6.4 mm
S1 Insert thickness total
6.4 mm
STDDES Standard designation
SNMU160610TN
TCINS Tolerance class insert
M
Working process
No working processes available
