Главная Каталог продукции Toolunited 12 201-02 - Square insert SNMG 190612 R3M IC806

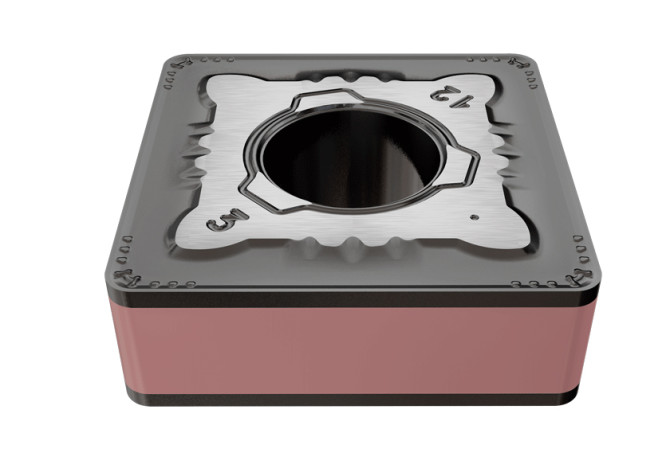

SNMG 190612 R3M IC806

Артикул: 3302386

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

AlTiN "SUMO TEC"

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

7.94 mm

Delivery state valid from

4/1/2022

DIN

SN1906122N

EPSR Insert included angle

90 Degree

FamilyProducts

Double-Sided 90° Square Inserts for Rough Machining on Stainless and Low Carbon Steel

GRDMFG Grade manufacturers designation

IC806

IC Inscribed circle diameter

19.05 mm

ID Technical product number

3302386

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SN1906122NB$$12

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03 ISO

ISO$SN1906122NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906122N

Name Identifying order number

SNMG 190612 R3M IC806

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

Working process

No working processes available

WT Weight of item

0.01 kg
