Главная Каталог продукции Toolunited 12 201-02 - Square insert SNGN 120716T IS8

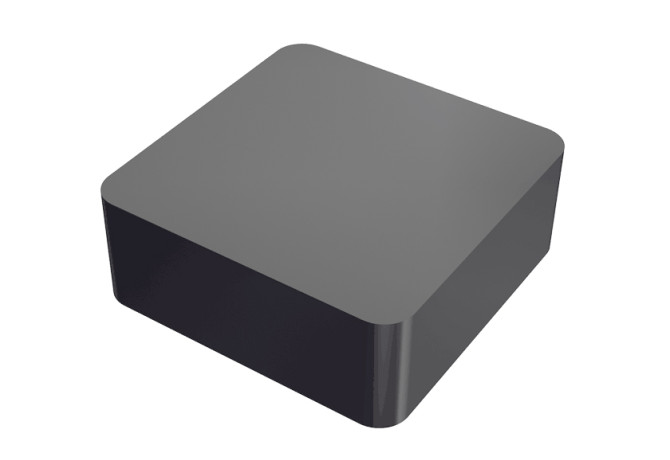

SNGN 120716T IS8

Артикул: 5700109

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

SN1207161N

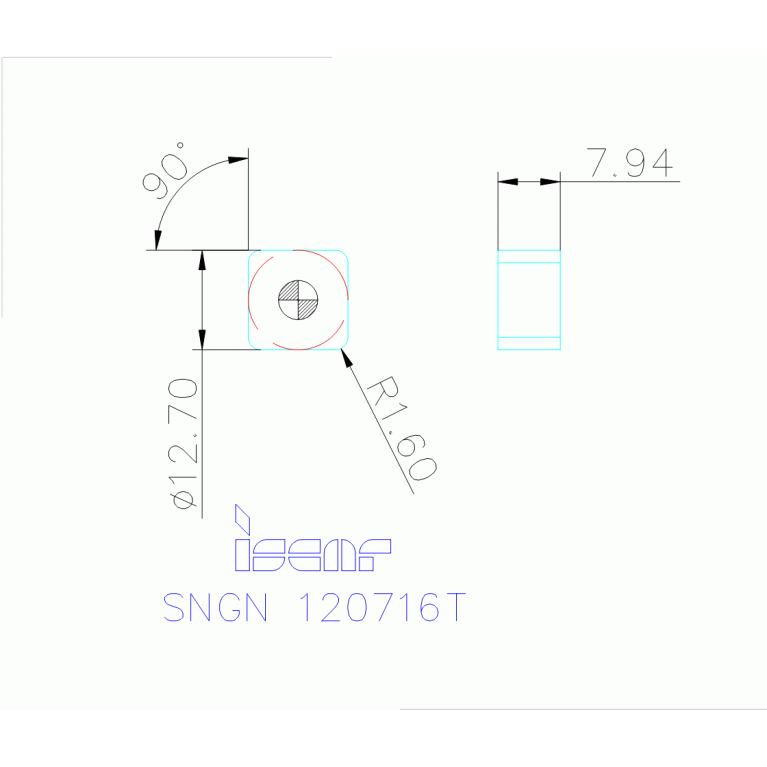

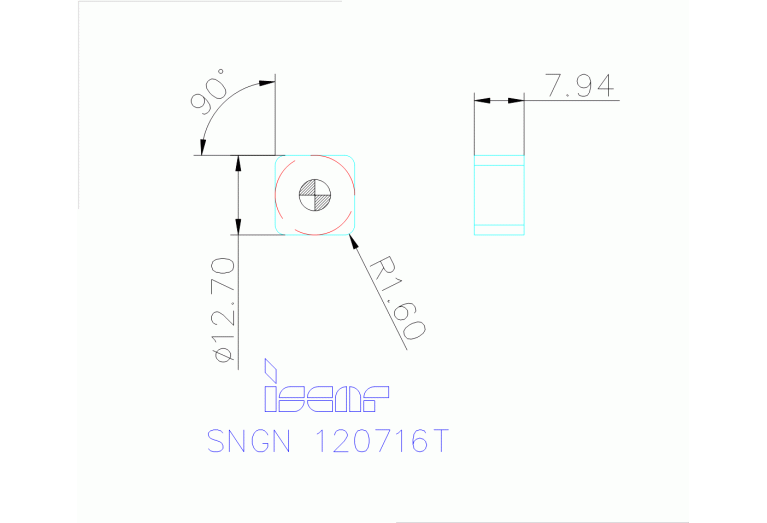

EPSR Insert included angle

90 Degree

FamilyProducts

Square Double-Sided Ceramic Inserts with a Flat Rake for Machining Cast Iron, Hardened Steel and Super Alloys

GRDMFG Grade manufacturers designation

IS8

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5700109

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SN1207161NA$$16

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

ISO$SN1207161NA$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1207161N

Name Identifying order number

SNGN 120716T IS8

RE Corner radius

1.6 mm

S Insert thickness

7.94 mm

Working process

No working processes available
