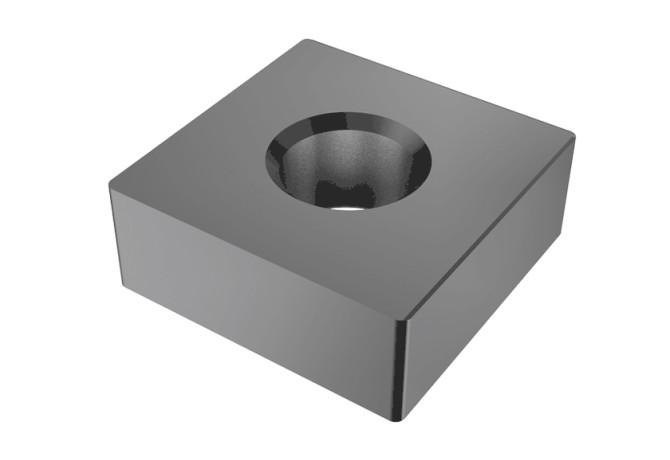

Главная Каталог продукции Toolunited 12 201-02 - Square insert SNGA 120416T IS8

SNGA 120416T IS8

Артикул: 5700078

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

SN1204162N

EPSR Insert included angle

90 Degree

FamilyProducts

Square Double-Sided Ceramic Inserts with a Flat Rake for Machining Cast Iron and Hardened Steel

GRDMFG Grade manufacturers designation

IS8

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5700078

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SN1204162NA$$16

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

ISO$SN1204162NA$$16

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204162N

Name Identifying order number

SNGA 120416T IS8

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

Working process

No working processes available

WT Weight of item

0.01 kg
