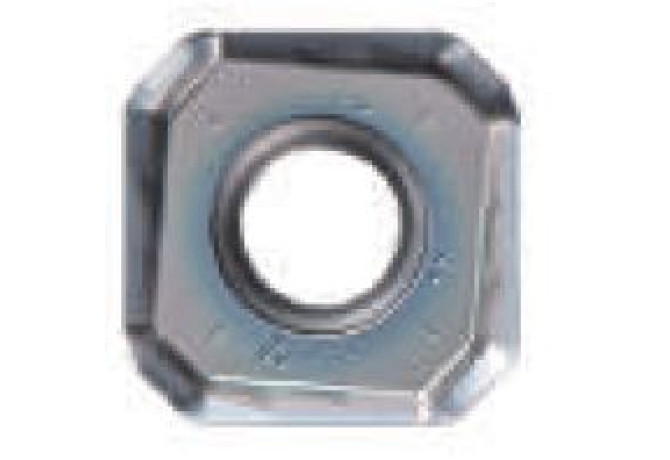

SNEU1406ANER-GM TN620M

Артикул: TST09315

В наличии

В корзину

Описание

Характеристики

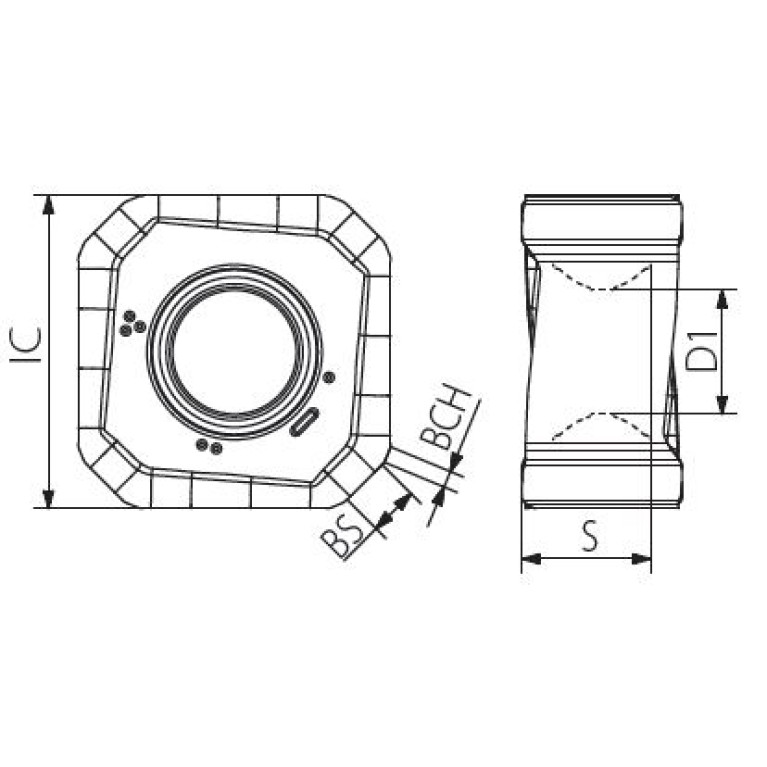

AN Clearance angle major

0 Degree

BS Wiper edge length

2.3 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CHW Corner chamfer width

0.8 mm

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

P20

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.8 mm

Delivery state valid from

4/21/2023

DIN

KYO-SN1406AN3R

EPSR Insert included angle

90 Degree

FamilyProducts

MB45 insert for milling

GRDMFG Grade manufacturers designation

TN620M

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

14.7 mm

ID Technical product number

TST09315

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

22.5 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

14.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KYO-SN1406AN3R

Name Identifying order number

SNEU1406ANER-GM TN620M

NOI Insert index count

S Insert thickness

6.07 mm

TCINS Tolerance class insert

Working process

No working processes available
