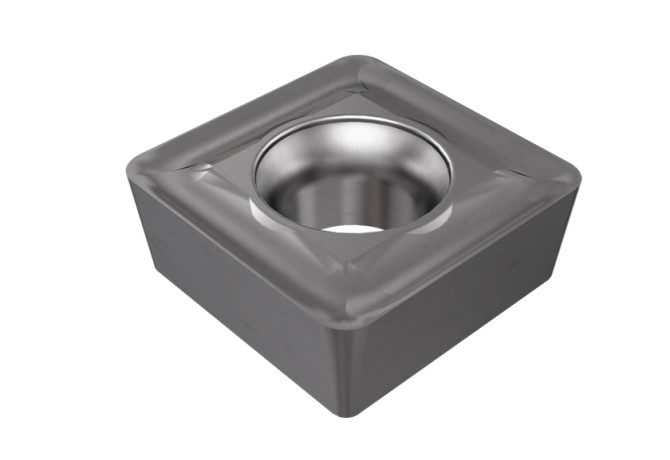

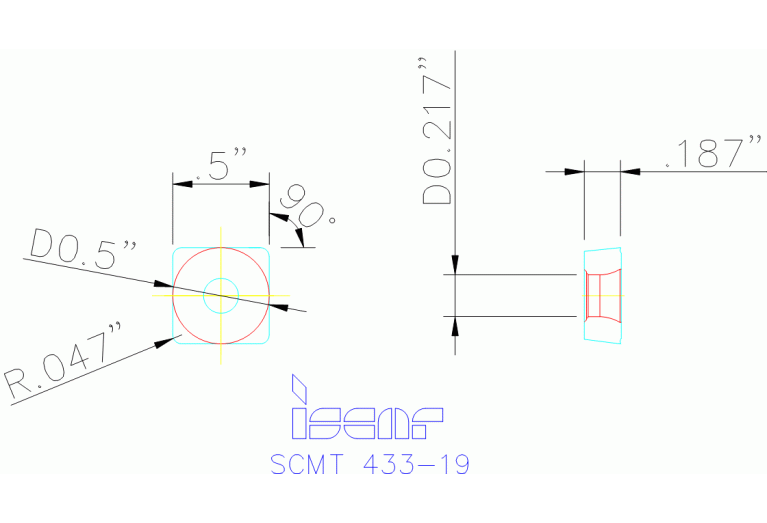

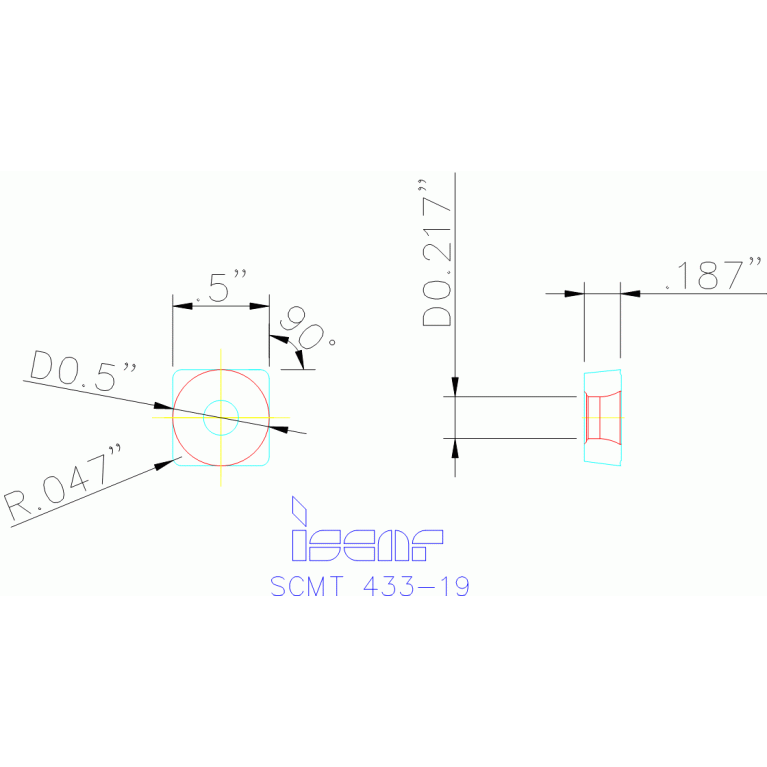

SCMT 120412-19 IC20

Артикул: 5600107

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

4/1/2022

DIN

SC1204123N

EPSR Insert included angle

90 Degree

FamilyProducts

Square Inserts with a 7° Positive Flank for Semi-Roughing at Medium to High Feeds

GRDMFG Grade manufacturers designation

IC20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5600107

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$SC1204123NB$$12

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03 ISO

ISO$SC1204123NB$$12

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204123N

Name Identifying order number

SCMT 120412-19 IC20

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

Working process

No working processes available

WT Weight of item

0.01 kg
