Главная Каталог продукции Toolunited 12 201-10 - Round insert RPMT1605M0EN-GH PR1810

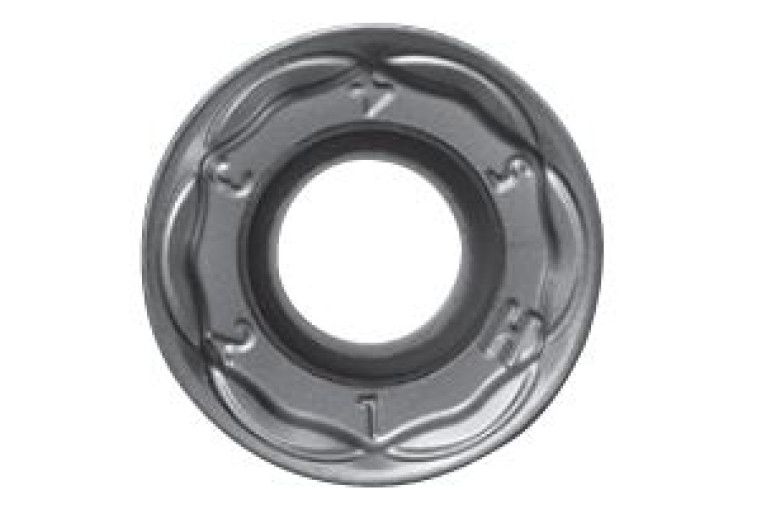

RPMT1605M0EN-GH PR1810

Артикул: TLS00131

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

MGACOAT NANO EX

COMPC Company code

KYO - Kyocera

CRCLMFG Chip removal class mfg

K10

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.8 mm

Delivery state valid from

4/21/2023

FamilyProducts

MRX insert for milling

GRDMFG Grade manufacturers designation

PR1810

GRDPRIO Standard designation of the grade main application

IC Inscribed circle diameter

16 mm

ID Technical product number

TLS00131

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-10 - Round insert

M M-dimension

16 mm

Name Identifying order number

RPMT1605M0EN-GH PR1810

S Insert thickness

5.56 mm

TCINS Tolerance class insert

Working process

No working processes available
