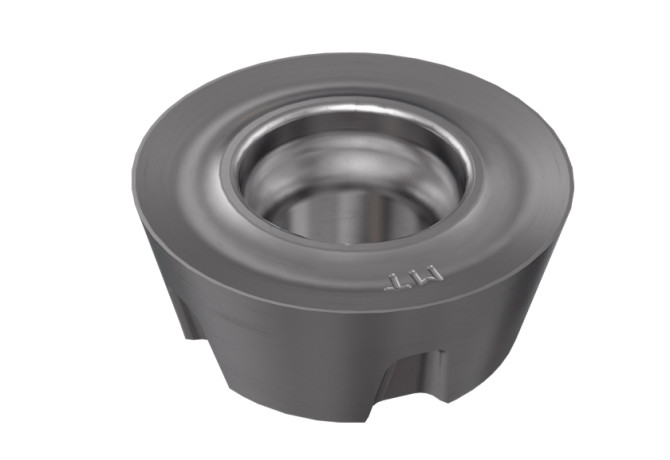

RPHX 1003M0-MT5 IC5500

Артикул: 3321383

В наличии

В корзину

Описание

Характеристики

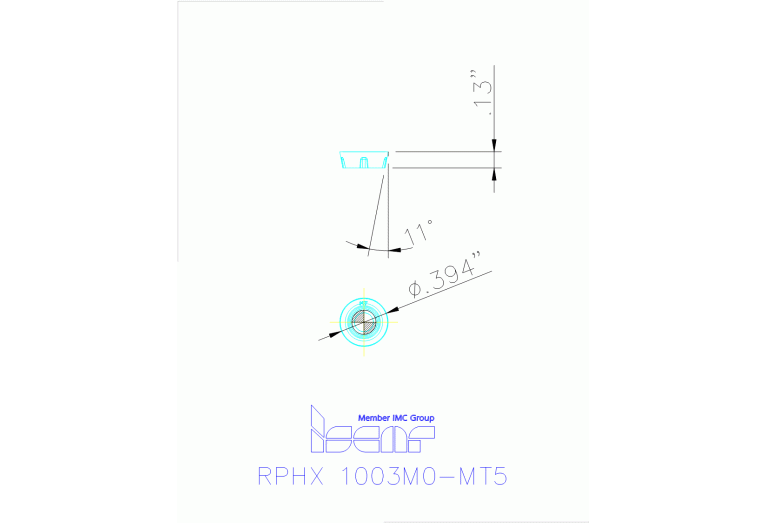

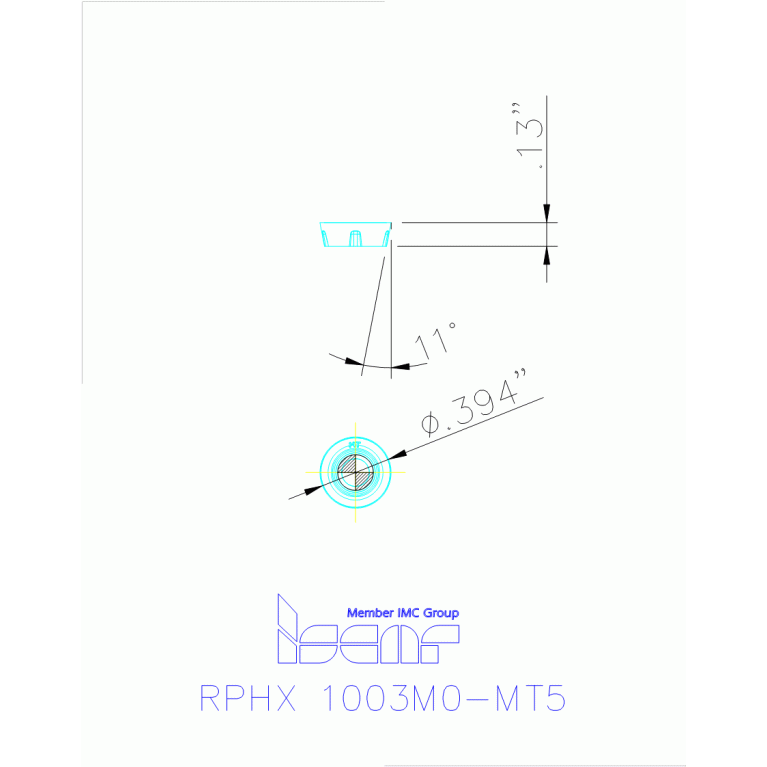

AN Clearance angle major

11 Degree

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IS - Iscar

Delivery state valid from

4/1/2022

DIN

IS-11088400505625

FamilyProducts

Round Milling Inserts with Specially Shaped Indexing Grooves

GRDMFG Grade manufacturers designation

IC5500

IC Inscribed circle diameter

10 mm

ID Technical product number

3321383

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$11088400505625

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

IS$$11088400505625

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-11088400505625

M M-dimension

10 mm

Name Identifying order number

RPHX 1003M0-MT5 IC5500

S Insert thickness

3.3 mm

Working process

No working processes available
